SKX-LD-C24 Series 120-150W LED Street Light

SKX-LD-C24 Series 120-150W LED Street Light – Durable, Weather‑Proof & Smart‑Control Outdoor Fixture

P/N: SKX-LD-C24 Series

Power: 120-150W

Input Voltage: AC 90-305Vac; 50/60Hz

Luminous efficiency: 120-160lm/W

Die-cast Aluminum housing

Lifetime: 5,000 hrs

IP66 IK08 CE

––––-––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

Key Features

Exceptional Energy Savings
≥120 lm/W system efficacy—up to 75% energy reduction vs. traditional HID lamps.

Rugged Durability
Die‑cast aluminum + powder‑coat finish; IP66 dust/water protection, IK08 impact resistance.

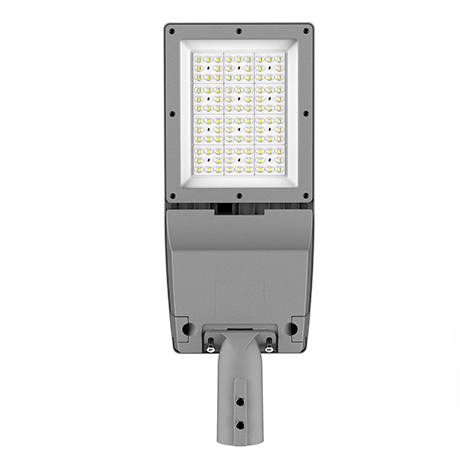

Optimized Optics
Precision lens array with Type II/III/V light distributions for uniform, glare‑free illumination.

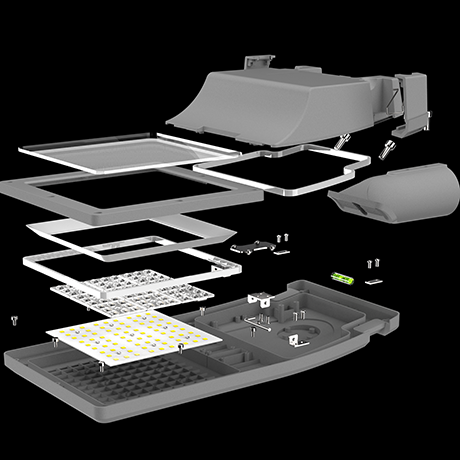

Modular Serviceability
Field‑replaceable LED & driver modules—tool‑free access for < 10 min maintenance.

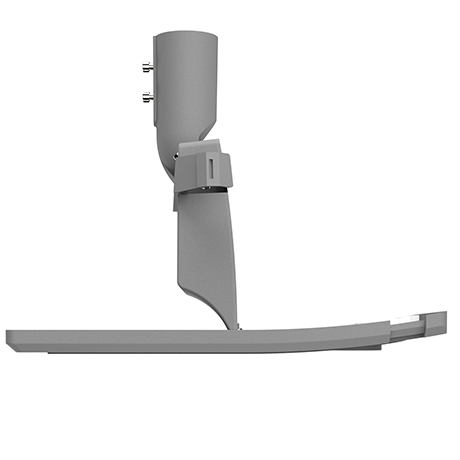

Flexible Mounting
Slip‑fit for ⌀60 mm or ⌀76 mm poles; side‑mount and top‑mount brackets included.

Smart Controls (optional)
DALI or 0–10 V dimming; photocell or microwave sensor; IoT‑ready for remote monitoring.

––––-––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

Technical Specifications

Parameter	Specifications
Model No.	SKX-LD-C24 Series
Power	120–150W
Input Voltage	AC 90–305V, 50/60Hz
Power Factor	> 0.95
Luminous Efficacy	120–160 lm/W
LED Chips	Lumileds / CREE / Customizable
Material	ADC12 Die-cast Aluminum
CCT	2700–6500K or Customizable
CRI	> 70 / 80
Driver Options	Inventronics / Meanwell / Customizable
Lifetime	50,000 hours
IP Rating	IP66
Package Size	74 × 29.5 × 15 cm
