SKX-LD-FF2 Series 50W-80W | 100W-150W LED Street Lights

SKX-LD-FF2 Series 50W-80W, 100W-150W LED Street Lights

P/N: SKX-LD-FF2 Series

Power: 50W /100W / 150W / 200W

Input Voltage: AC 85-265Vac; 50/60Hz

Luminous efficiency: upto 160lm/W

Die-cast Aluminum housing

Lifetime: 50,000 hrs

IP65 IK08 CE

Send Email

Product Detail

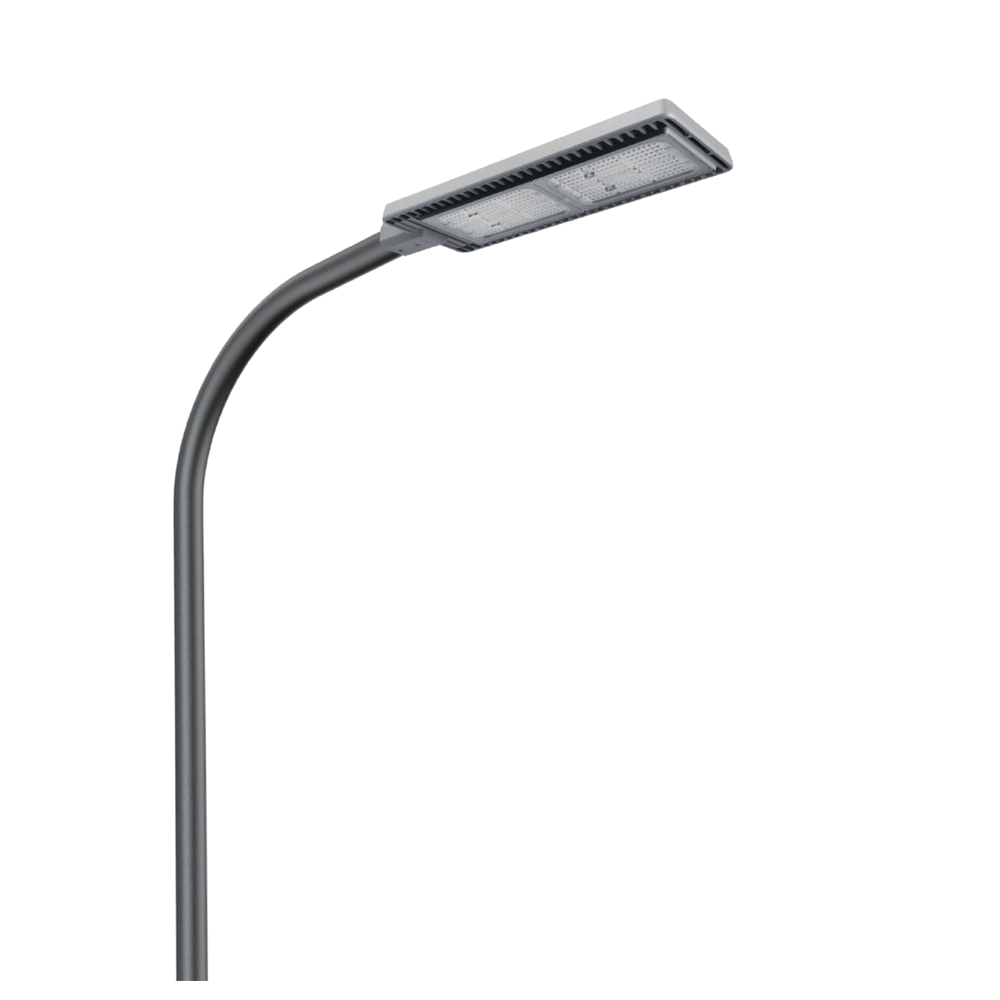

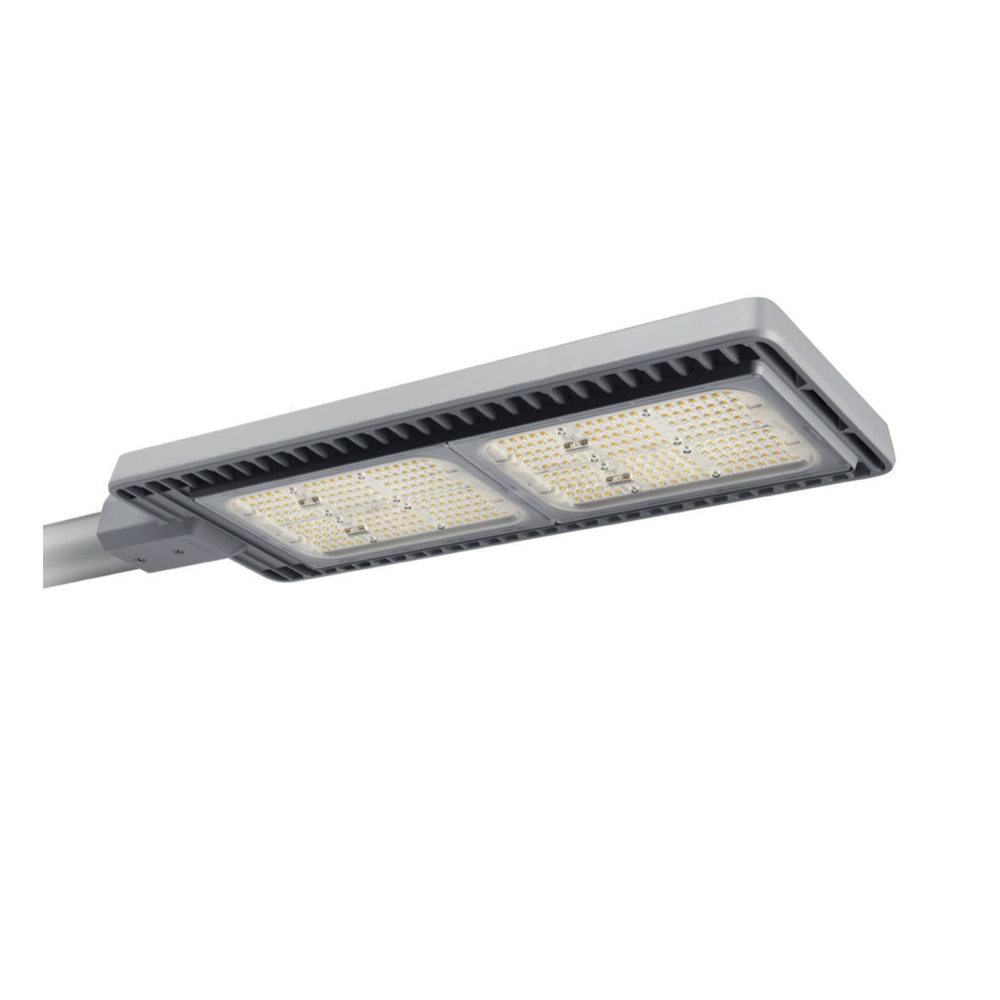

SKX-LD-FF2 Series LED Street Light (50-150W)
Compact & High-Efficiency Roadway Lighting Solution

Technical Specifications

1. Electrical & Optical Performance

Parameter 50-80W 100-150W
Input Voltage AC90-305V, 50/60Hz
Power Factor >0.95
Luminous Efficacy 110-160 lm/W
LED Type 3030/5050 SMD (Lumileds/CREE)
LED Count 60-96pcs (3030) 120-180pcs (3030)
CCT Options 2700K-6500K (Customizable)
CRI >70 (Standard), >80 (Optional)
Beam Angle 70°×140° (Type III Standard)

2. Mechanical Design

Feature Specification
Housing Material ADC12 Die-cast Aluminum
Lens Material 5mm Tempered Glass + PMMA Reflector
Thermal Conductivity 96W/M.K
Protection Rating IP65 (Full silicone sealing)
Impact Resistance IK08

3. Dimensions & Weight

Model Fixture (L×W×H) Package (L×W×H) Weight
50-80W 400×230×120mm 480×250×120mm 5.2kg
100-150W 490×230×120mm 500×250×120mm 7.8kg

4. Thermal Performance

  • Junction Temperature: <65°C at 45°C ambient

  • Hot-Cold Zone Separation: Patented design

  • Heat Dissipation: Optimized fin structure

Key Features

✔ Advanced Optical System

  • Asymmetric light distribution (Type II/III/V optional)

  • UGR<19 anti-glare technology

✔ Durability Enhanced

  • Corrosion-resistant coating (1,000h salt spray tested)

  • -40°C to +60°C operating range

✔ Smart Control Ready

  • Compatible with 0-10V/DALI dimming

  • Optional photocell/motion sensors

✔ Installation Flexibility

  • 60mm pole diameter compatibility

  • Tool-less maintenance access

Packaging & Logistics

Model Units/CTN 20'GP Qty 40'HQ Qty Pallet Config
50-80W 1 1,600 3,800 32pcs/pallet
100-150W 1 1,200 2,900 24pcs/pallet

Packaging Features:

  • Reinforced double-wall cartons

  • Custom EPS foam inserts

  • Weather-resistant plastic wrapping

Certifications & Warranty

  • Safety: CE, ENEC, IEC 60598-1

  • EMC: EN 55015, EN 61000-3-2

  • Environmental: RoHS, REACH

  • Warranty: 5 years standard

Recommended Applications



URBAN STREETS → 100-150W @ 6-8m

RESIDENTIAL → 50-80W @ 4-6m

PARKING LOTS → 100-150W @ 5-7m



Value-Added Services
✅ Free DIALux lighting simulations
✅ Custom photometric reports
✅ Extended warranty options

*Note: All dimensions in millimeters. 5050 SMD option available for 50-80W model only.*
