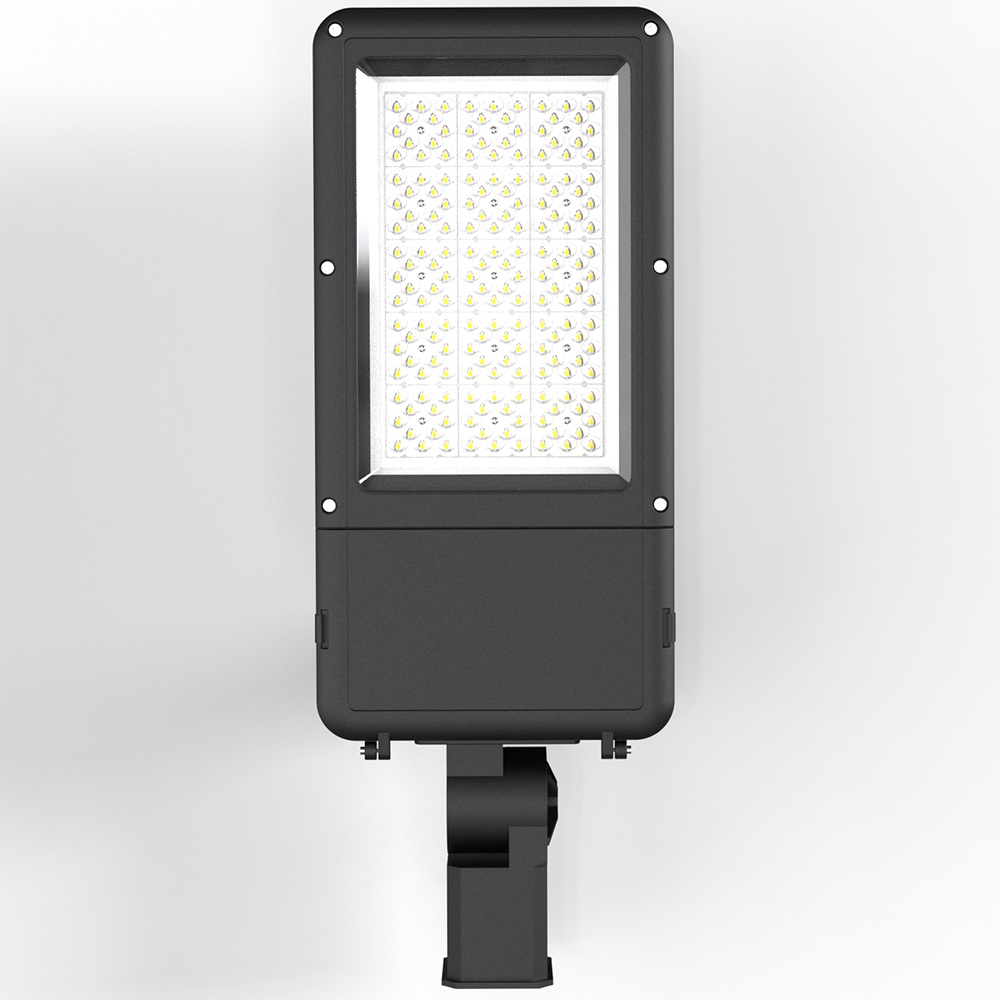

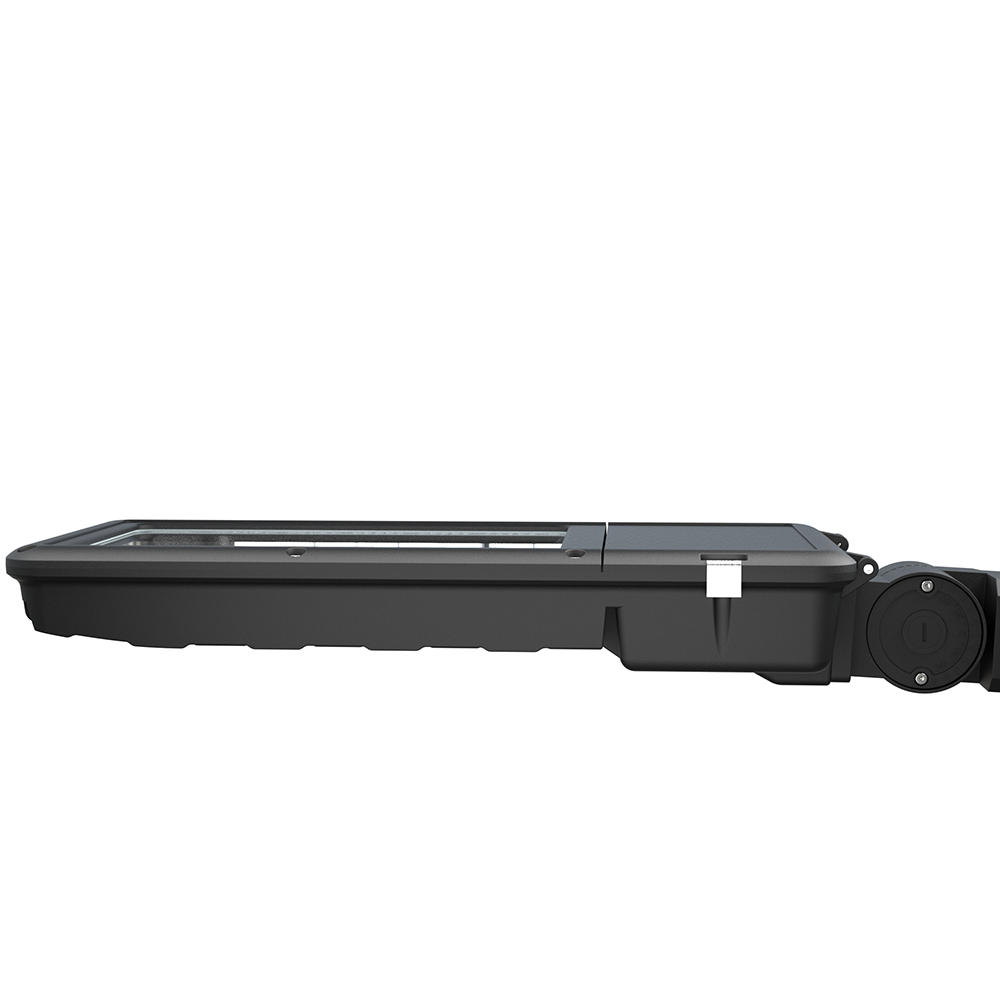

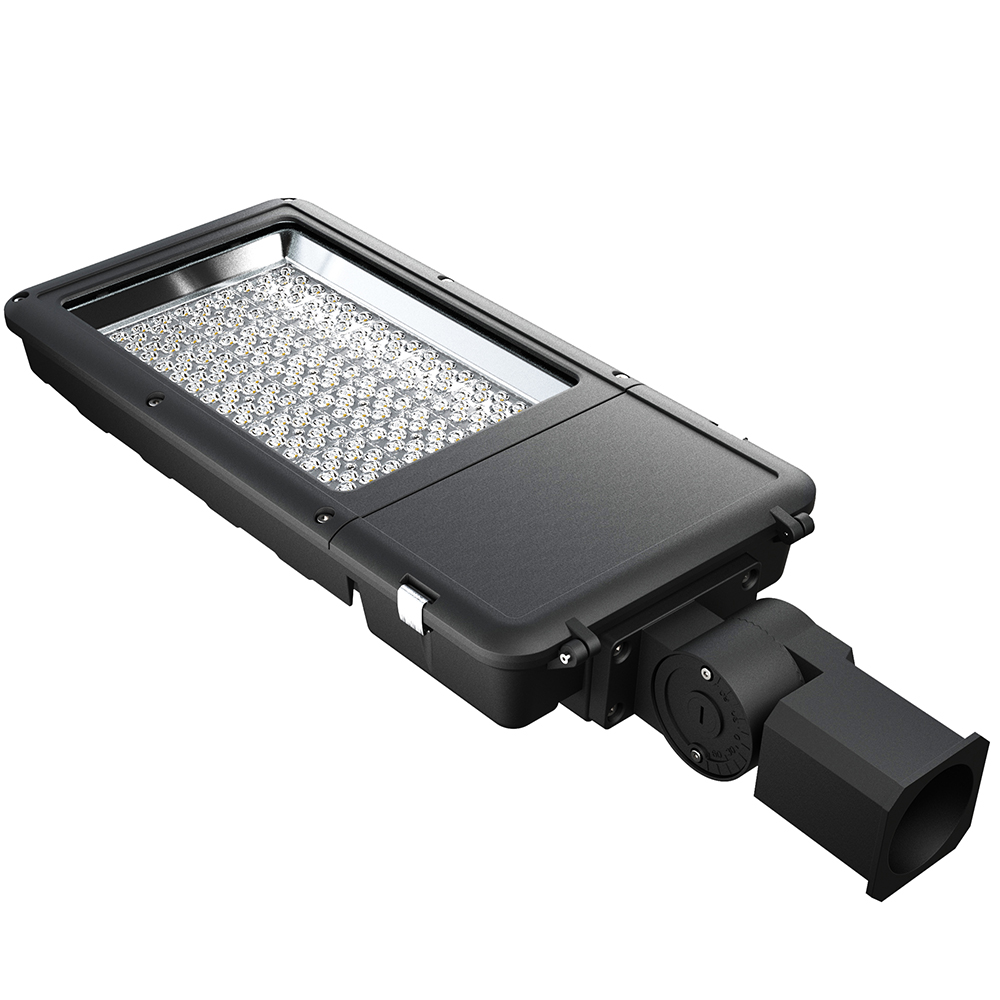

SKX-LD-V1/V2 Series 100W~250W LED Street Lights

SKX-LD-V1/V2 Series 100W~250W LED Street Lights

P/N: SKX-LD-V1/V2 Series

Power: 100W~150W / 200W~250W

Input Voltage: AC 90-305Vac; 50/60Hz

Luminous efficiency: upto 150lm/W

Die-cast Aluminum housing

Lifetime: 50,000 hrs

IP65 CE

Send Email

Product Detail

SKX-LD-V1/V2 Series LED Street Light (100-250W)
Professional-Grade Adjustable Roadway Lighting

Technical Specifications

1. Electrical & Optical Performance

Parameter V1 (100-150W) V2 (200-250W)
Input Voltage AC90-305V, 50/60Hz
Power Factor >0.95
Luminous Efficacy 110-150 lm/W
LED Type 3030/5050 SMD (Lumileds/CREE)
LED Configuration 100W: 120pcs 200W: 240pcs
CCT Options 2700K-6500K (Customizable)
CRI >70 (Standard), >80 (Optional)
Beam Angle 70°×140° (Standard)

2. Mechanical Design

Feature Specification
Housing Material ADC12 Die-cast Aluminum
Lens Material 5mm Tempered Glass + PC Reflector
Thermal Conductivity 96W/M.K
Protection Rating IP65 (Full silicone sealing)
Impact Resistance IK08

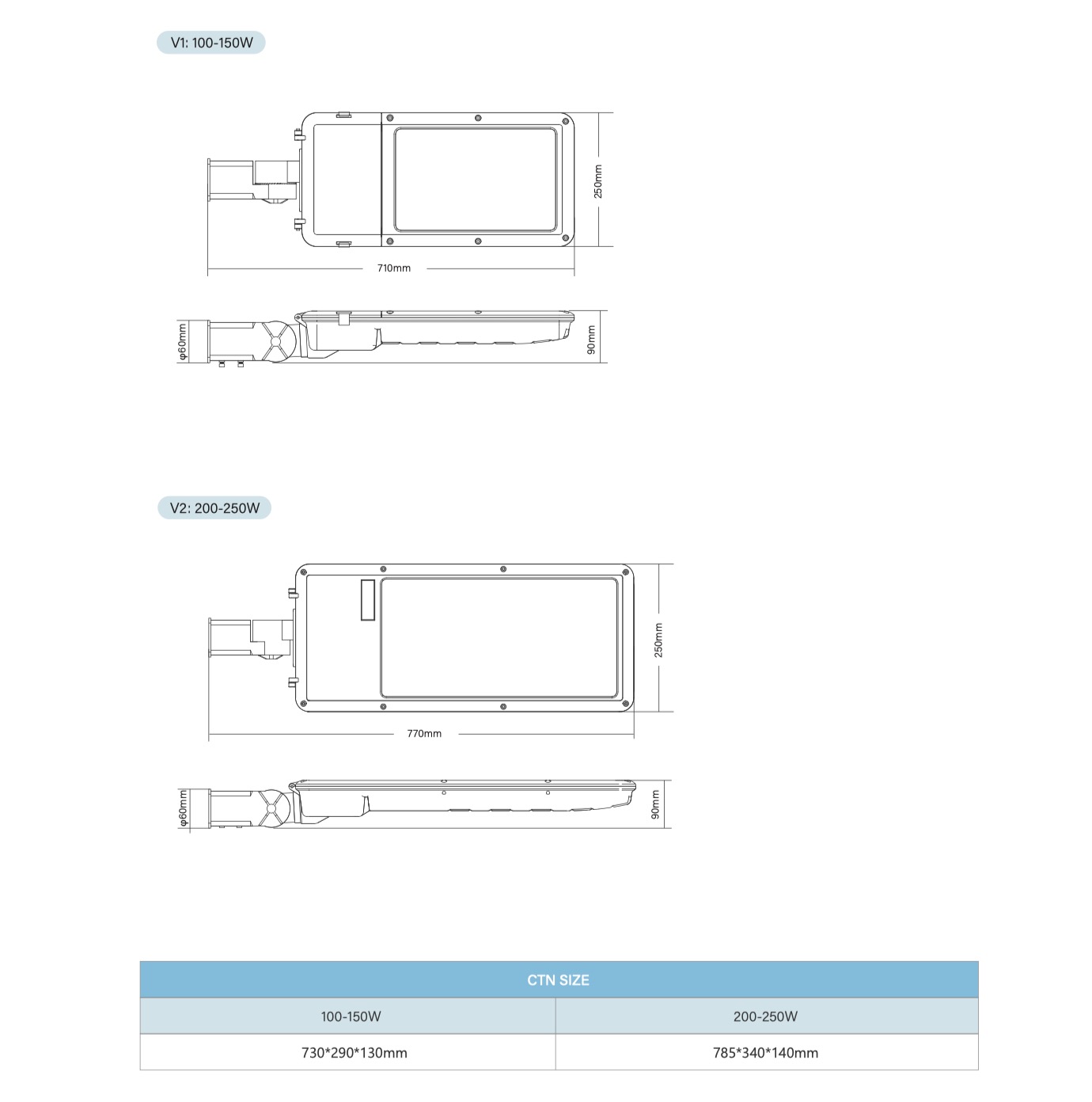

3. Dimensions & Weight

Model Fixture (L×W×H) Package (L×W×H) Weight
V1 (150W) 750×250×900mm 730×290×130mm 8.2kg
V2 (250W) 770×250×900mm 785×340×140mm 10.5kg

4. Thermal Performance

  • Junction Temperature: <65°C at 45°C ambient

  • Hot-Cold Zone Separation: Extends LED lifespan to 50,000+ hours

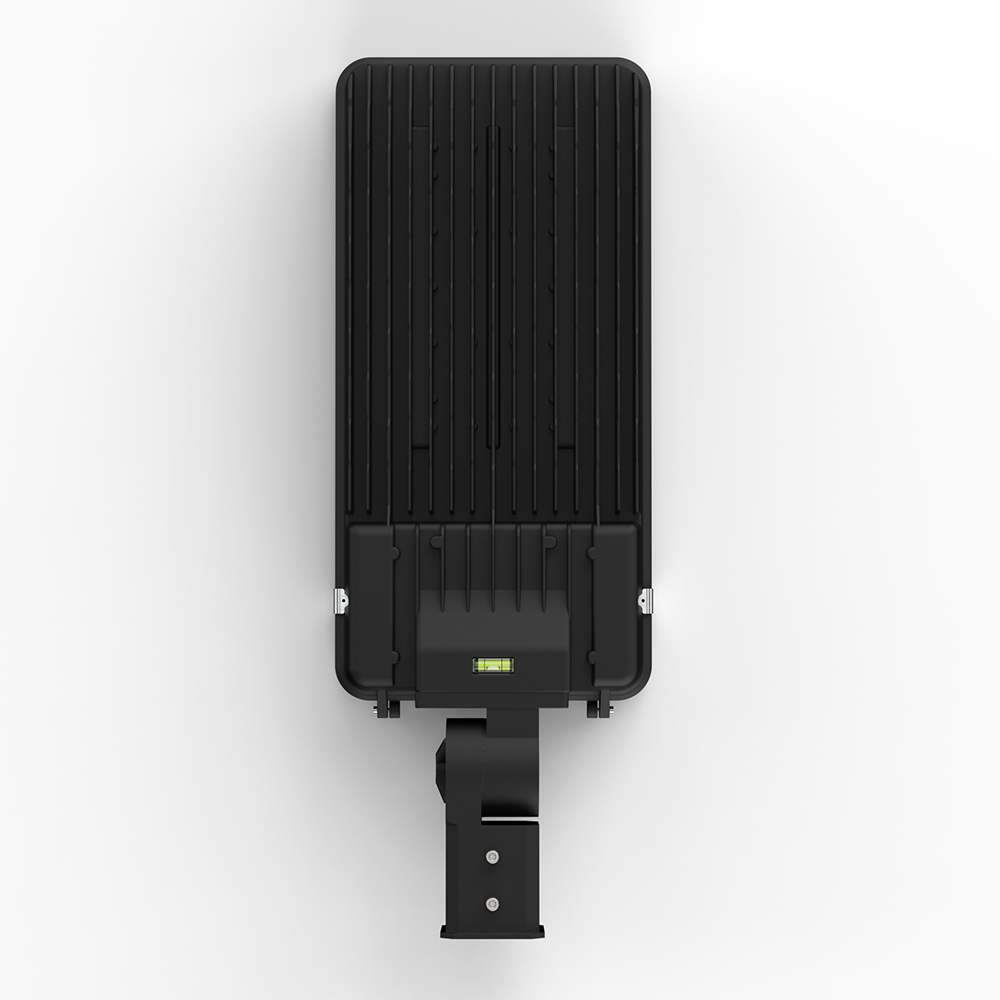

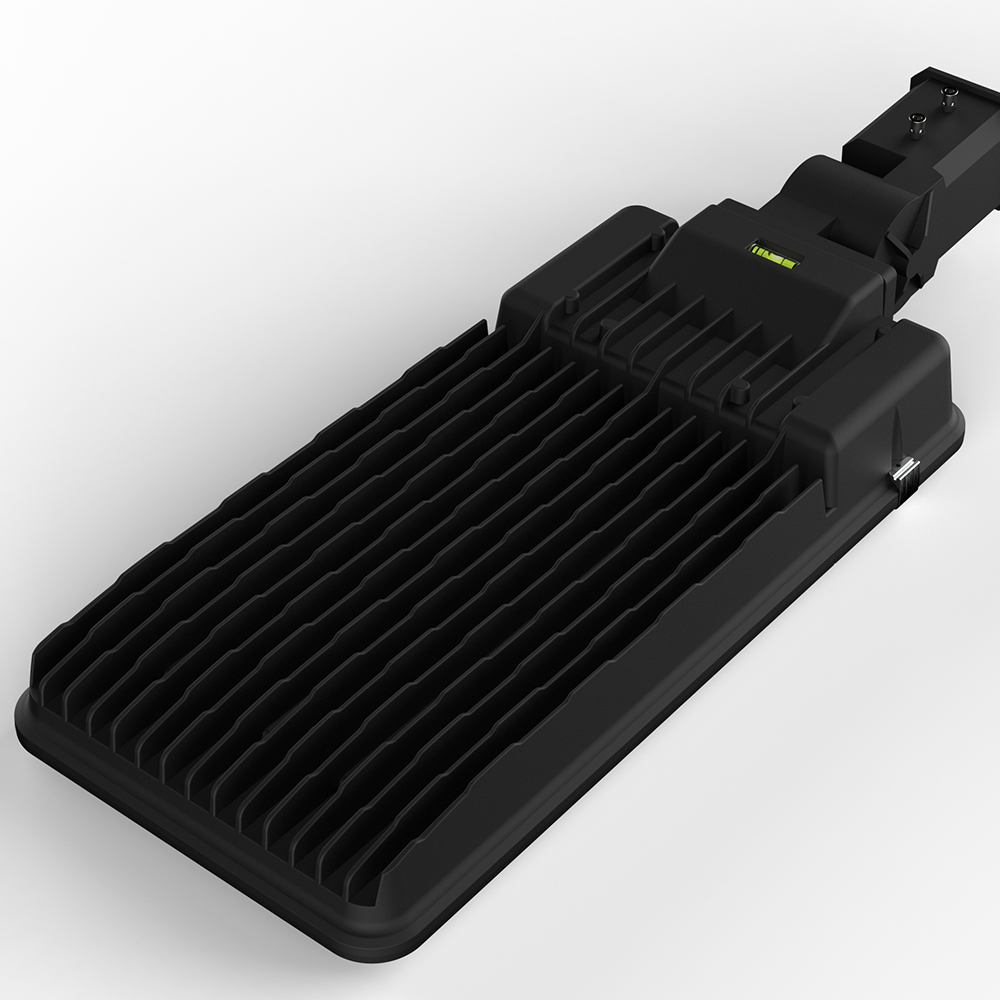

  • Heat Dissipation: Optimized aluminum fins

Key Features

✔ Precision Optics

  • Darkoo anti-glare lens for uniform light distribution

  • Optional Type II, III or V beam patterns

✔ Durable Construction

  • Corrosion-resistant powder coating

  • Streamlined windproof design

✔ Smart Control Ready

  • Compatible with 0-10V/DALI dimming

  • Optional photocell/motion sensors

✔ Easy Installation

  • Tool-less access for maintenance

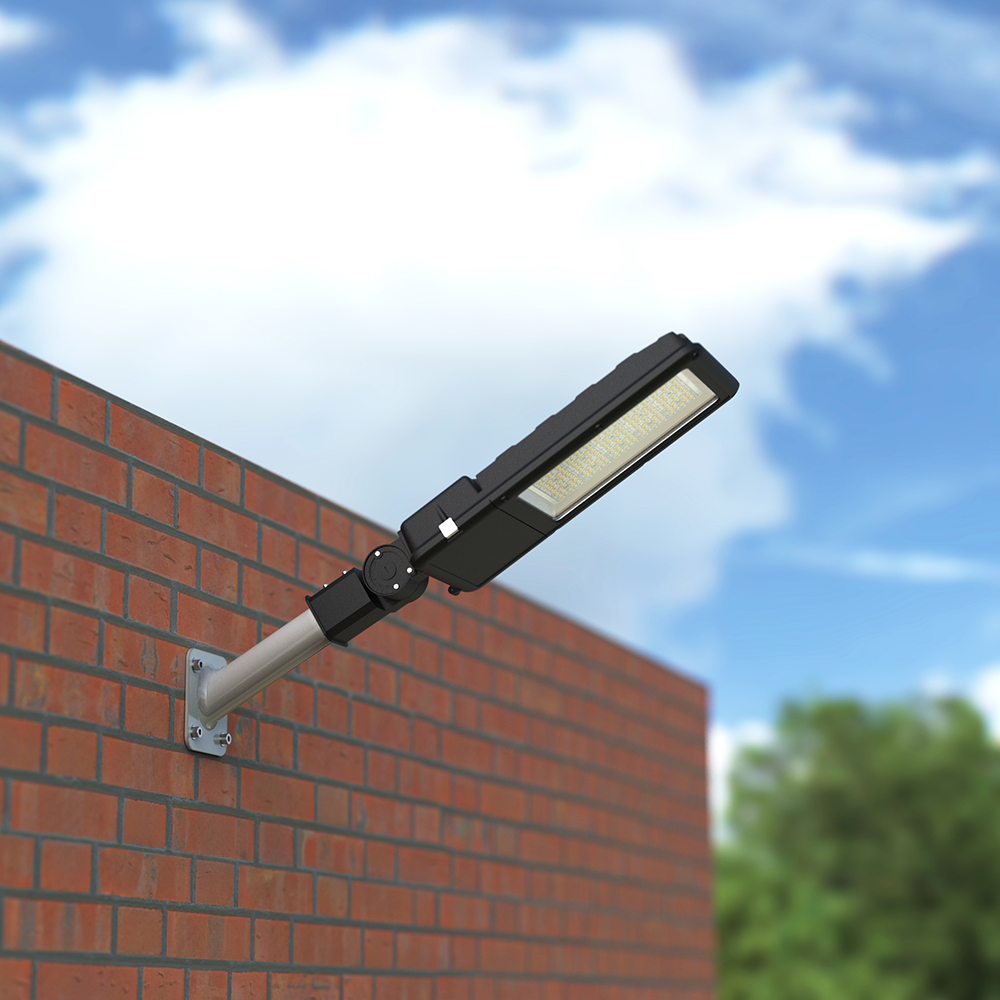

  • Adjustable mounting bracket (±15°)

Packaging & Logistics

Model CTN Qty 20'GP Capacity 40'HQ Capacity
V1 (150W) 1 1,100 2,700
V2 (250W) 1 900 2,200

Packaging Features:

  • Reinforced double-wall cartons

  • EPS corner protectors

  • Moisture-proof inner lining

Certifications & Warranty

  • Safety: CE, RoHS, IEC 60598-1

  • Reliability: LM-80 & TM-21 verified

  • Warranty: 5 years standard

Recommended Applications

  • Urban Roads: V1 (100-150W) @ 6-9m poles

  • Highways: V2 (200-250W) @ 8-12m

  • Industrial Zones: V1/V2 @ 7-10m
