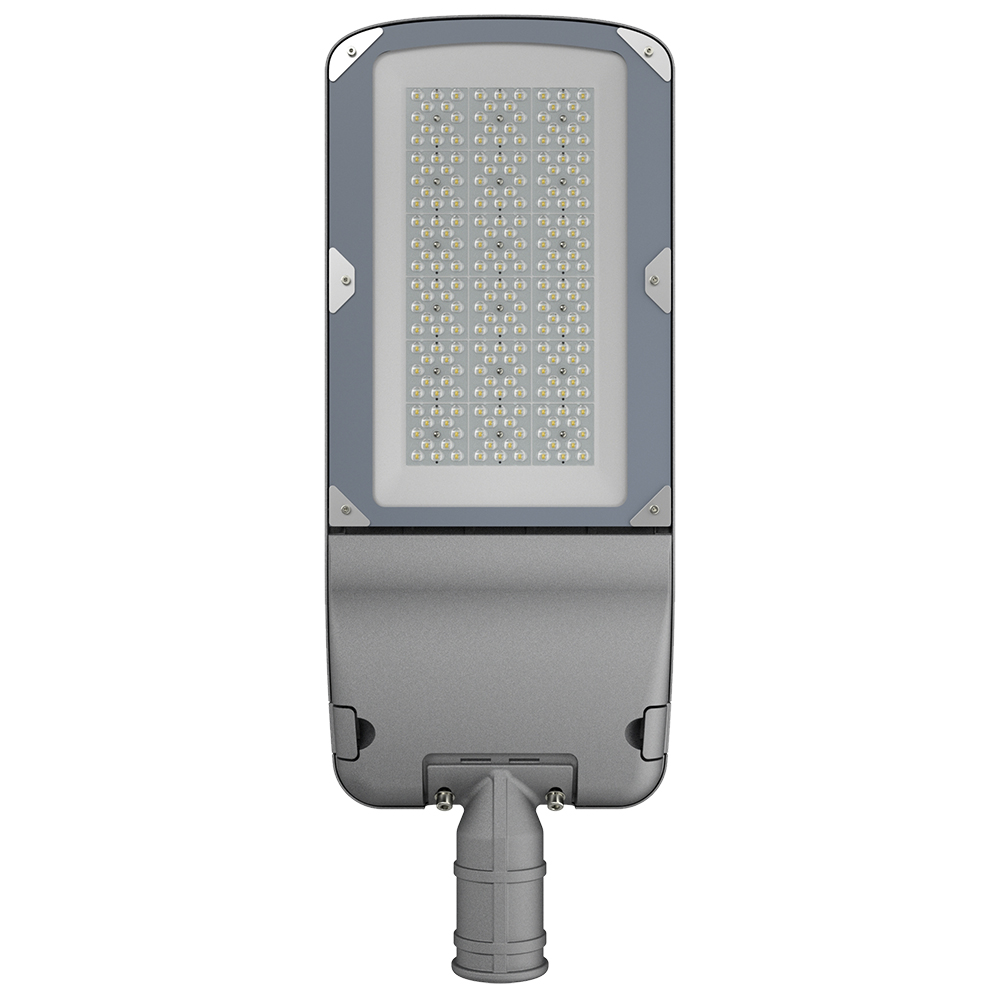

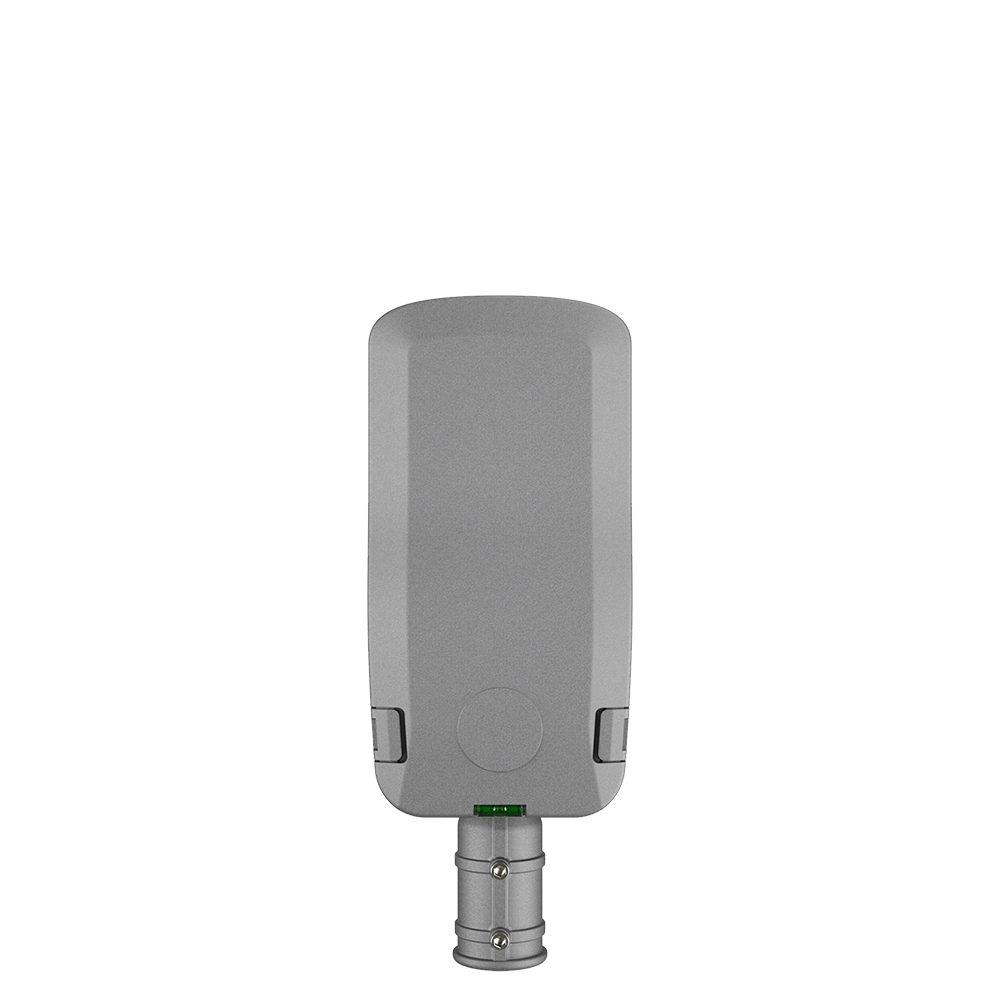

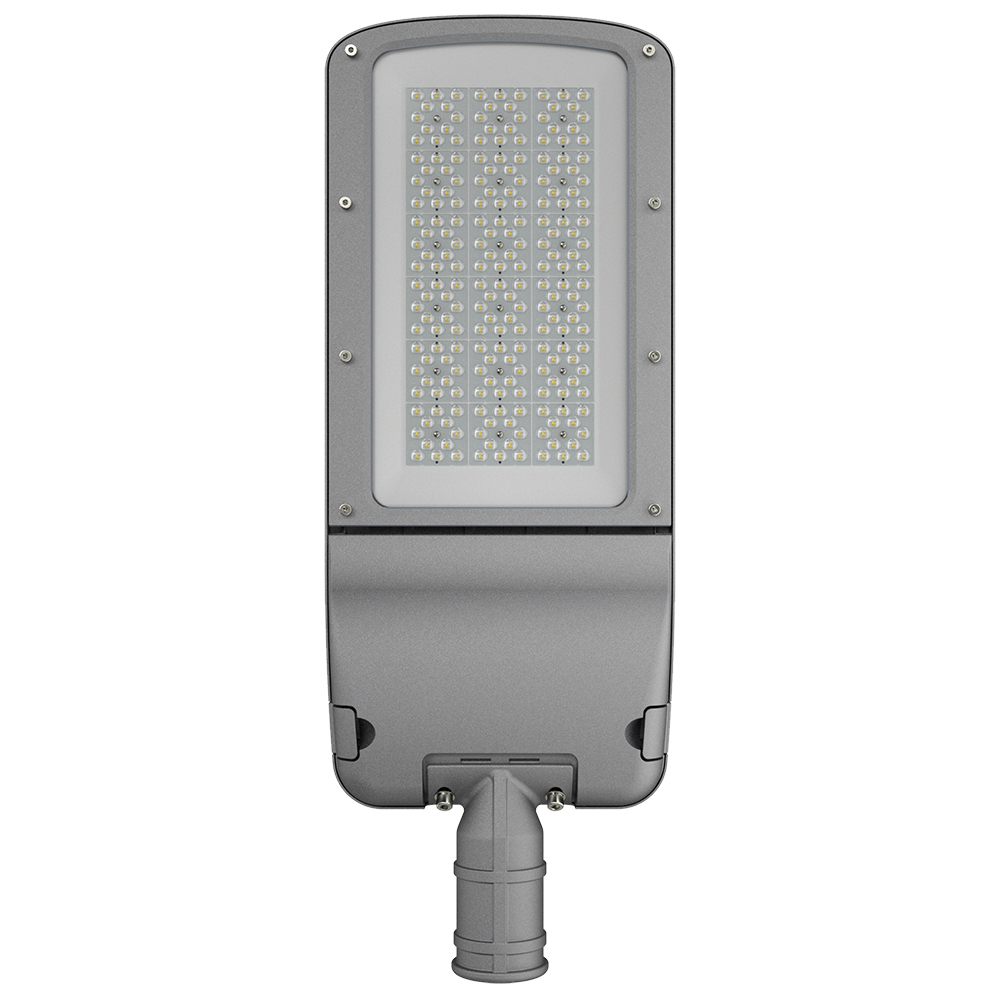

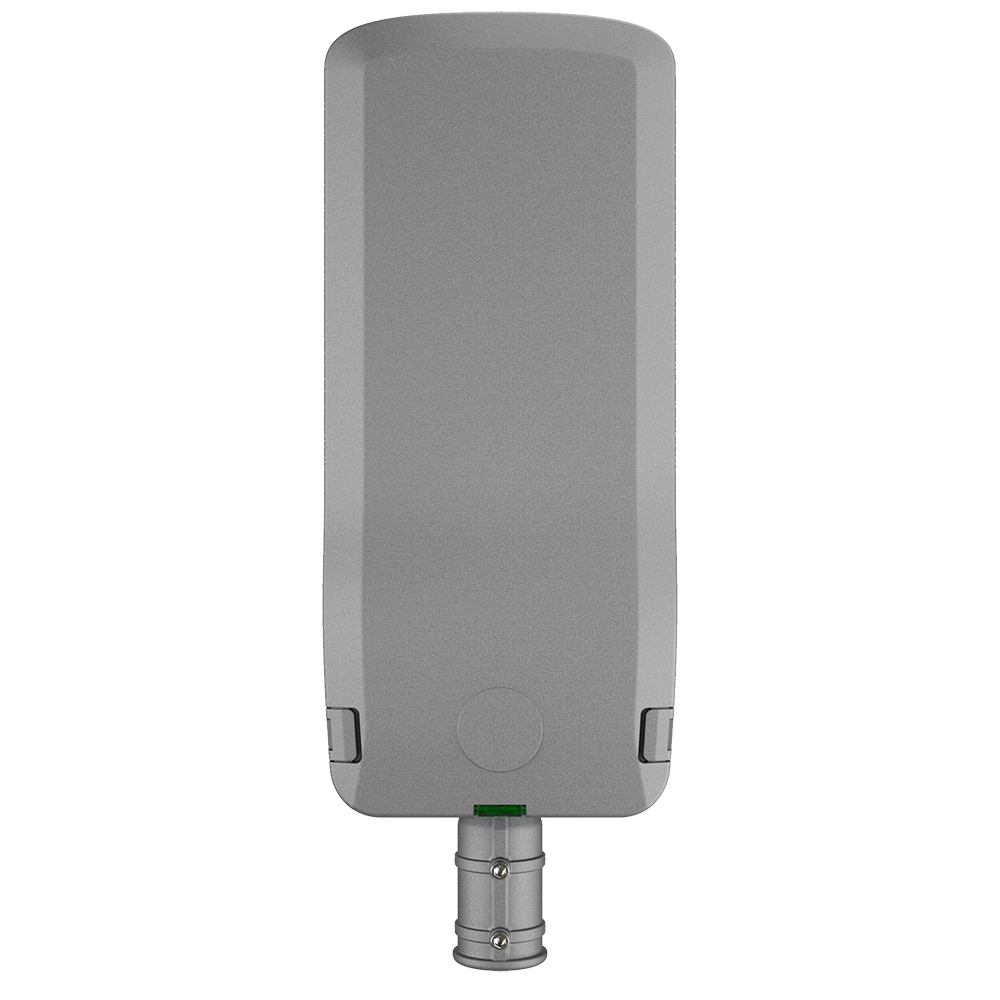

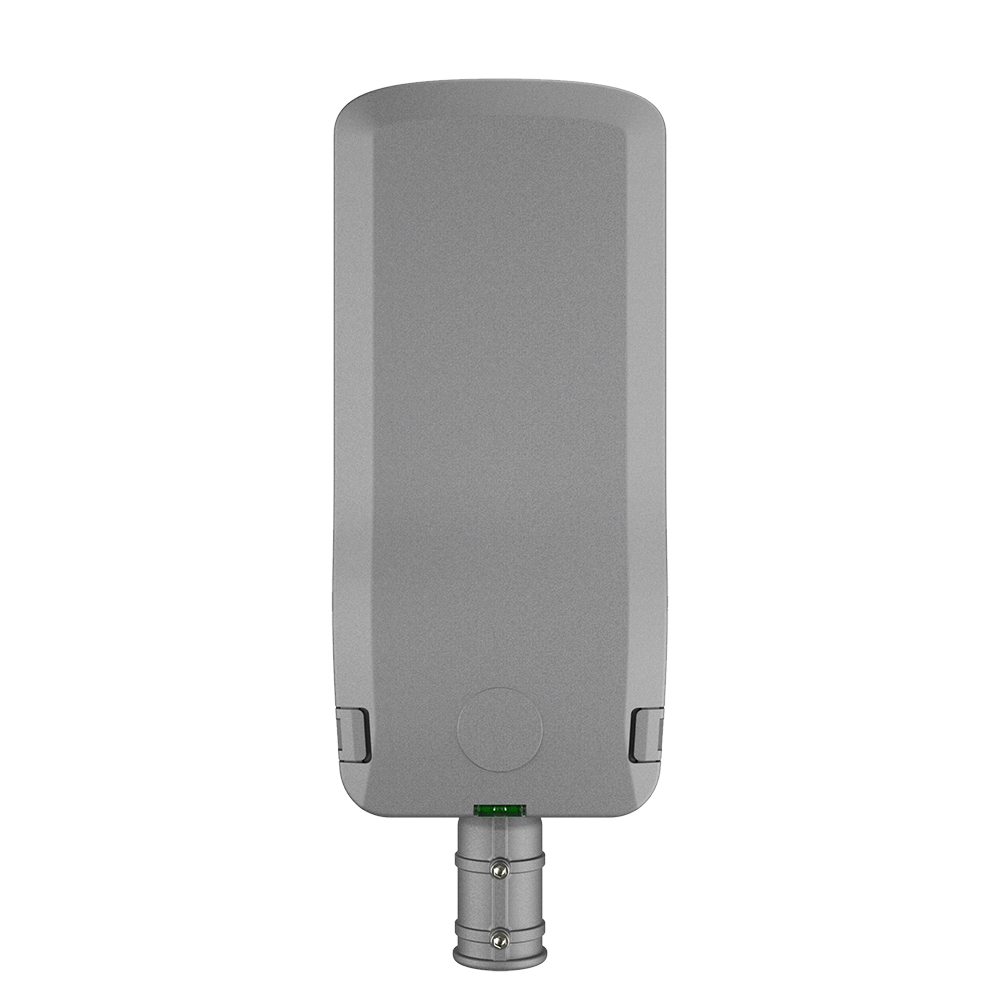

SKX-LD-YZ22 Series 50W | 100W | 150W | 200W LED Street Lights

SKX-LD-YZ22 Series 50W-200W LED Street Lights

P/N: SKX-LD-YZ22 Series

Power: 50W /100W / 150W / 200W

Input Voltage: AC 90-305Vac; 50/60Hz

Luminous efficiency: upto 150lm/W

Die-cast Aluminum housing

Lifetime: 50,000 hrs

IP65 CE

Send Email

Product Detail

SKX-LD-YZ22 Series LED Street Light (50-200W)
Compact & Efficient Urban Lighting Solution

Technical Specifications

1. Electrical & Optical Performance

Parameter 50W 100W 150W 200W
Input Voltage AC90-305V, 50/60Hz
Power Factor >0.95
Luminous Efficacy 110-150 lm/W
LED Type 3030/5050 SMD (Lumileds/CREE)
LED Count 60pcs (3030) 120pcs (3030) 180pcs (3030) 240pcs (3030)
CCT Options 2700K-6500K (Customizable)
CRI >70 (Standard), >80 (Optional)
Beam Angle 70°×140° (Standard)

2. Mechanical Design

Feature Specification
Housing Material ADC12 Die-cast Aluminum
Lens Material 5mm Tempered Glass + PC Reflector
Thermal Conductivity 96W/M.K
Protection Rating IP65 (Full silicone sealing)
Impact Resistance IK08

3. Dimensions & Weight

Model Fixture (L×W×H) Package (L×W×H) Weight
50W 320×320×135mm 570×270×155mm 4.8kg
100W 480×320×135mm 640×320×155mm 6.2kg
150W 580×320×135mm 740×320×155mm 7.5kg
200W 640×320×135mm 790×320×155mm 8.9kg

4. Thermal Performance

  • Junction Temperature: <65°C at 45°C ambient

  • Hot-Cold Zone Separation: Extends LED lifespan to 50,000+ hours

  • Heat Dissipation: Optimized fin structure (20% larger surface area)

Key Features

✔ Space-Saving Design

  • Uniform 320mm width across all models for consistent aesthetics

  • Slim profile (135mm thickness) for discreet urban installation

✔ Advanced Optics

  • Nano-coated PC reflector for 92% light output efficiency

  • Optional Type II, III or V light distributions

✔ Durability Optimized

  • Salt spray tested coating (1,000h)

  • -40°C to +60°C operating range

✔ Smart-Ready

  • Pre-wired for photocell/dimming controls

  • Optional IoT nodes (4G/LoRa)

Packaging & Logistics

Model CTN Qty 20'GP Capacity 40'HQ Capacity Pallet Config
50W 1 1,500 3,600 28pcs/pallet
200W 1 1,100 2,700 20pcs/pallet

Packaging Features:

  • Reinforced triple-wall cartons

  • Custom foam inserts for vibration protection

  • Weather-resistant plastic wrapping

Certifications & Warranty

  • Safety: CE, ENEC, IEC 60598-1

  • EMC: EN 55015, EN 61000-3-2

  • Environmental: RoHS, REACH

  • Warranty: 5 years (LED modules)

Recommended Applications



URBAN STREETS → 100-150W @ 6-8m

RESIDENTIAL → 50-100W @ 4-6m

PARKING LOTS → 150-200W @ 7-9m



Value-Added Services
Free lighting layout design (Provide site plans)
Custom branding available (Housing color/logo)
Extended warranty up to 7 years

Note: 5050 SMD option reduces power by 15%. All dimensions in millimeters.
