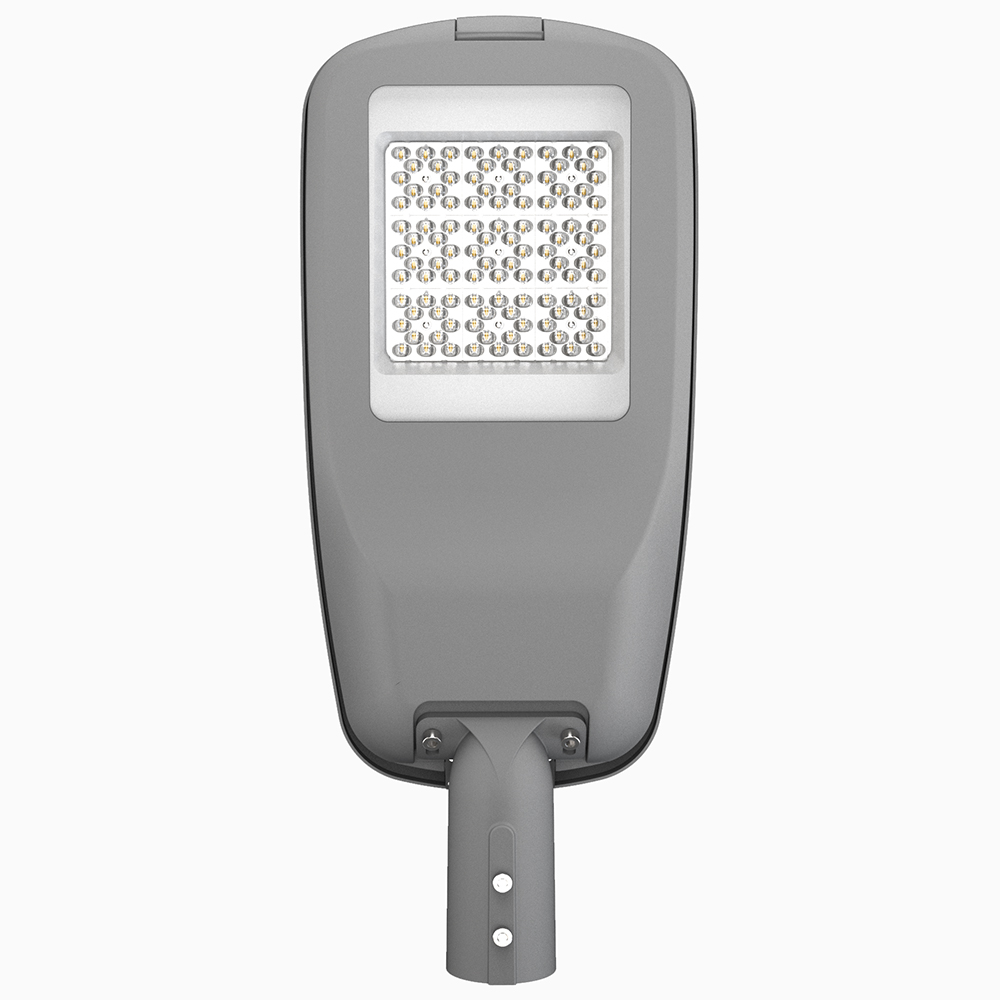

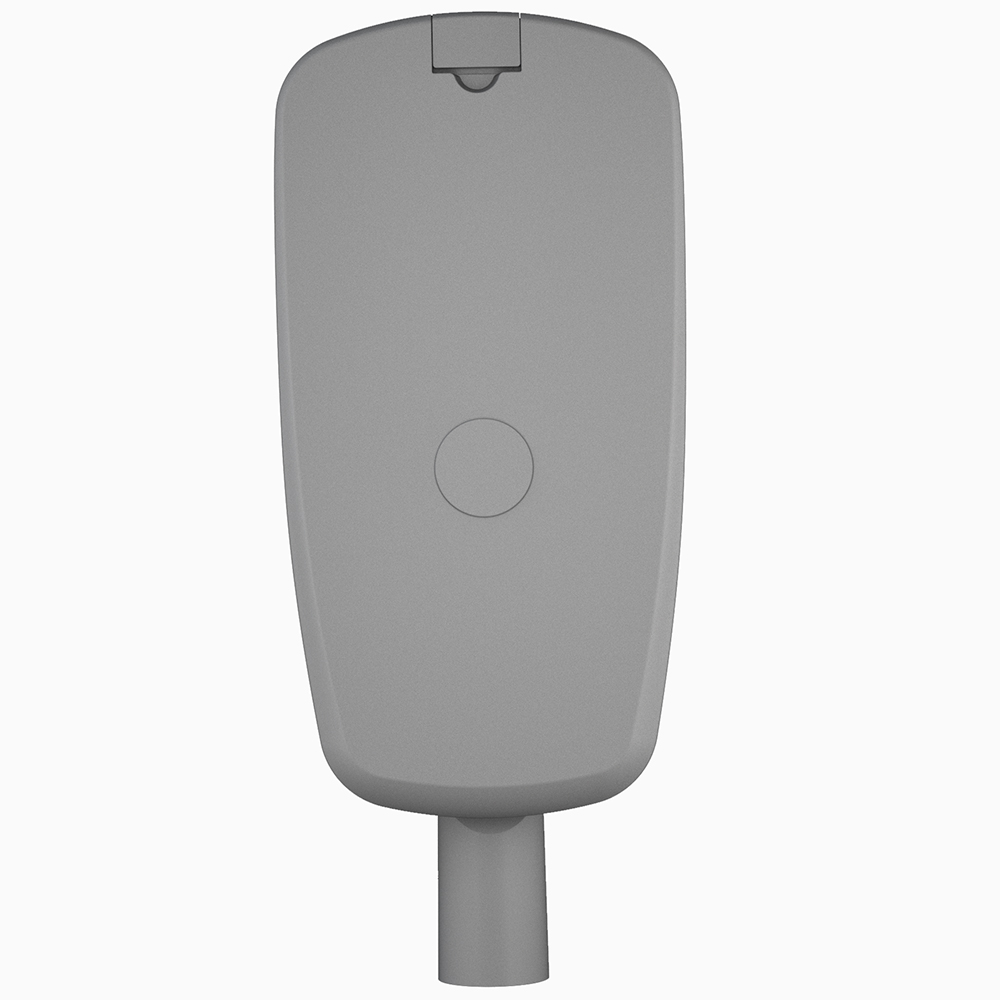

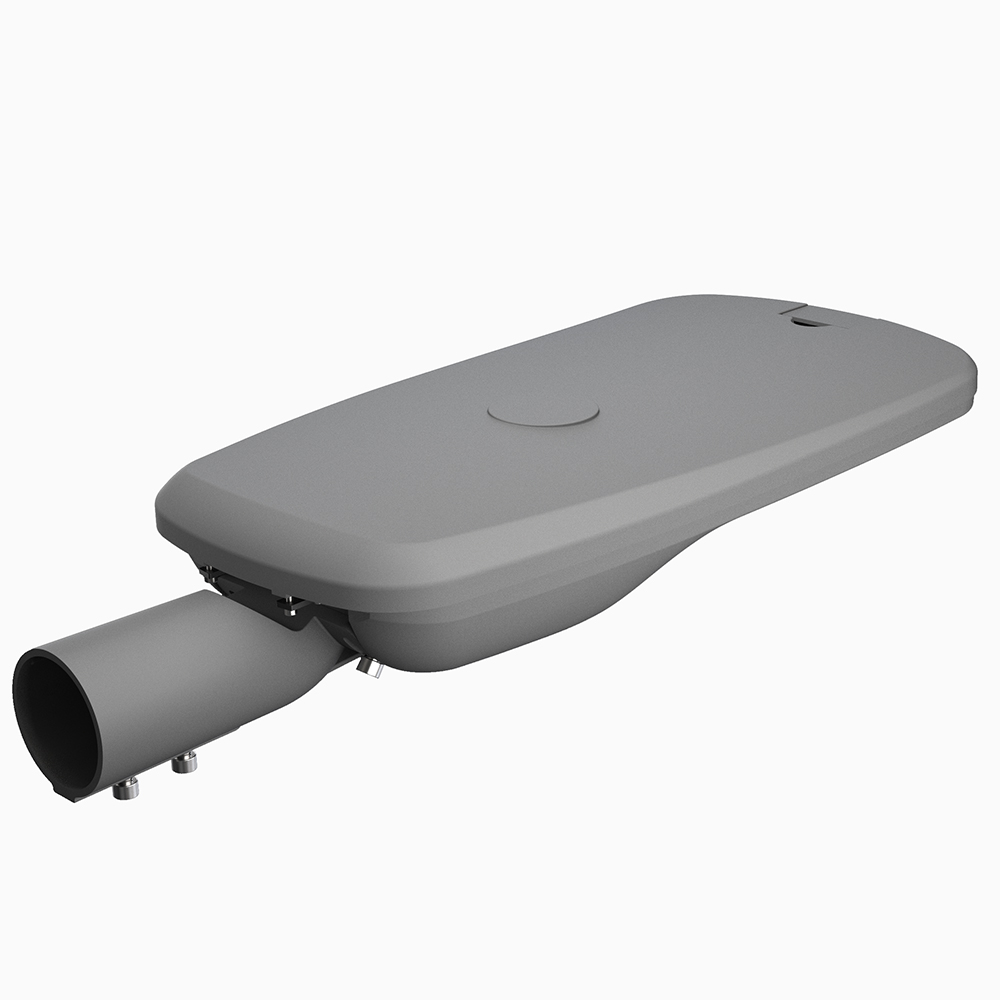

SKX-LD-DY20 Series 100W | 150W LED Street Lights

SKX-LD-DY20 Series 100W & 150W LED Street Lights

P/N: SKX-LD-DY20 Series

Power: 100W / 150W

Input Voltage: AC 90-305Vac; 50/60Hz

Luminous efficiency: upto 150lm/W

Die-cast Aluminum housing

Lifetime: 50,000 hrs

IP65 CE

Send Email

Product Detail

SKX-LD-DY20 Series LED Street Light (100-150W)
High-Efficiency Medium-Power Roadway Lighting

Technical Specifications

1. Electrical & Optical Performance

Parameter 100W Model 150W Model
Input Voltage AC90-305V, 50/60Hz
Power Factor >0.95
Luminous Efficacy 110-160 lm/W
LED Type 3030/5050 SMD (Lumileds/CREE)
LED Configuration 100W: 120pcs (3030) / 60pcs (5050) 150W: 180pcs (3030) / 90pcs (5050)
CCT Options 2700K-6500K (Customizable)
CRI >70 (Standard)
Beam Angle 70°×140° (Standard)

2. Mechanical Design

Feature Specification
Housing Material ADC12 Die-cast Aluminum
Lens Material 5mm Tempered Glass + PC Reflector
Thermal Conductivity 96W/M.K
Protection Rating IP65 (Full silicone sealing)
Impact Resistance IK08

3. Dimensions & Weight

Model Fixture (L×W×H) Package (L×W×H) Weight
100W 583×260×960mm 680×290×170mm 7.5kg
150W 673×275×960mm 740×330×200mm 9.2kg

4. Thermal Performance

  • Junction Temperature: <68°C at 45°C ambient

  • Hot-Cold Zone Separation: Extends LED lifespan to 50,000+ hours

  • Heat Dissipation: Optimized aluminum fins

Key Features

✔ Precision Optics

  • Anti-glare PC reflector for uniform light distribution

  • Optional Type II or III beam patterns

✔ Durable Construction

  • Corrosion-resistant powder coating (RAL9005)

  • Streamlined design withstands 50m/s winds

✔ Smart Control Ready

  • Compatible with 0-10V/DALI dimming (Optional)

  • Photocell sensor pre-wired

✔ Easy Installation

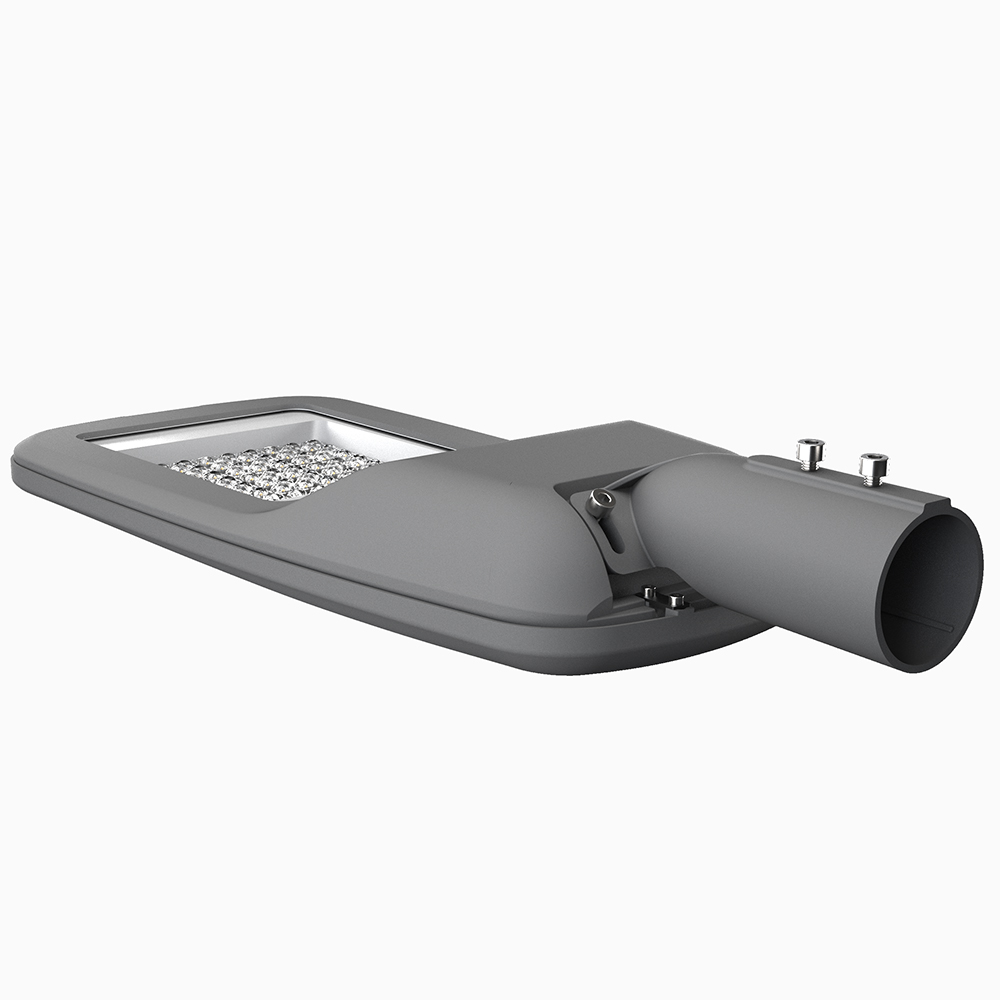

  • Adjustable mounting bracket (±15°)

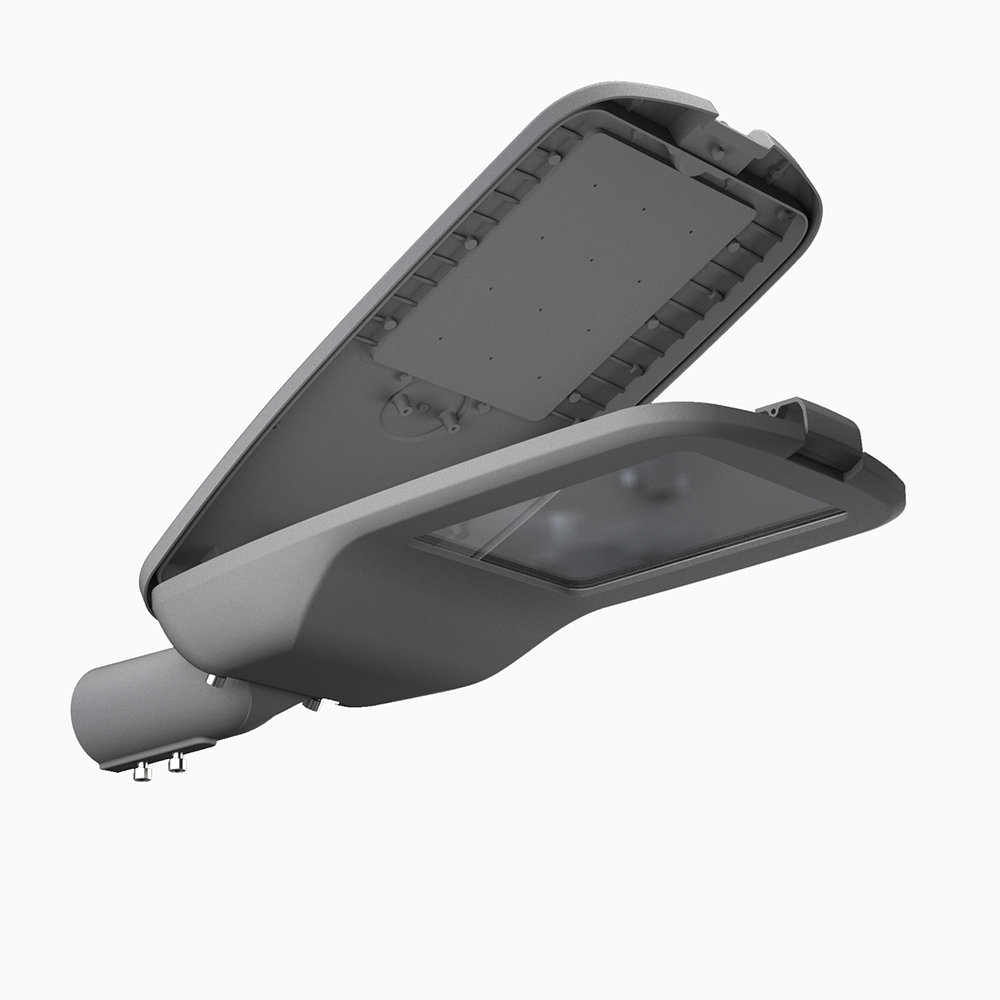

  • Tool-less access for maintenance

Packaging & Logistics

Model CTN Qty 20'GP Capacity 40'HQ Capacity
100W 1 1,200 2,900
150W 1 1,000 2,400

Packaging Features:

  • Reinforced double-wall cartons

  • EPS corner protectors

  • Moisture-proof inner lining

Certifications & Warranty

  • Safety: CE, RoHS, IEC 60598-1

  • EMC: EN 55015, EN 61000-3-2

  • Warranty: 5 years standard

Recommended Applications

  • Urban Streets: 100W @ 6-8m poles

  • Parking Lots: 150W @ 7-9m

  • Campus Areas: 100W-150W @ 5-7m
