SKX-LD-FF Series 60-100W | 120-180W | 200-300W LED Street Lights

SKX-LD-FF Series 60~300W LED Street Lights

P/N: SKX-LD-FF Series

Power: 60-100W /120-180W / 200-300W

Input Voltage: AC 85-265Vac; 50/60Hz

Luminous efficiency: upto 150lm/W

Die-cast Aluminum housing

Lifetime: 50,000 hrs

IP65 IK08 CE

Send Email

Product Detail

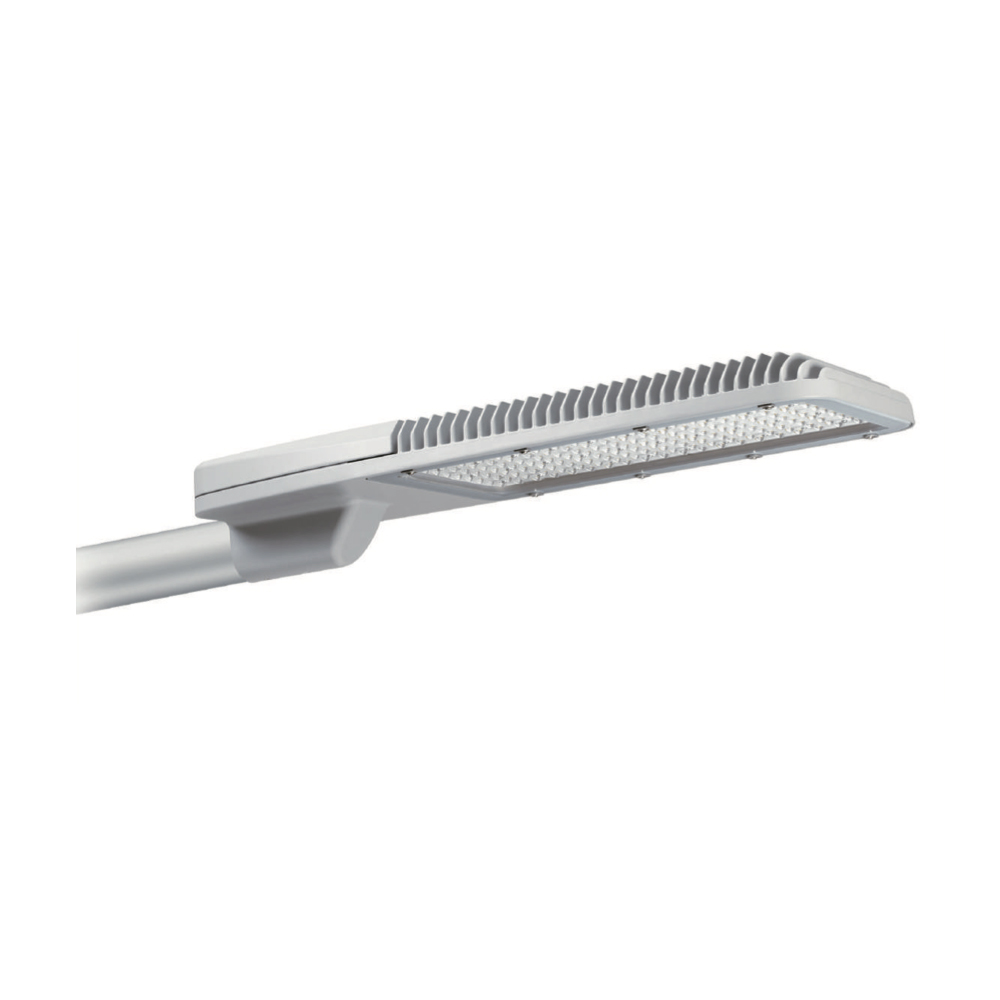

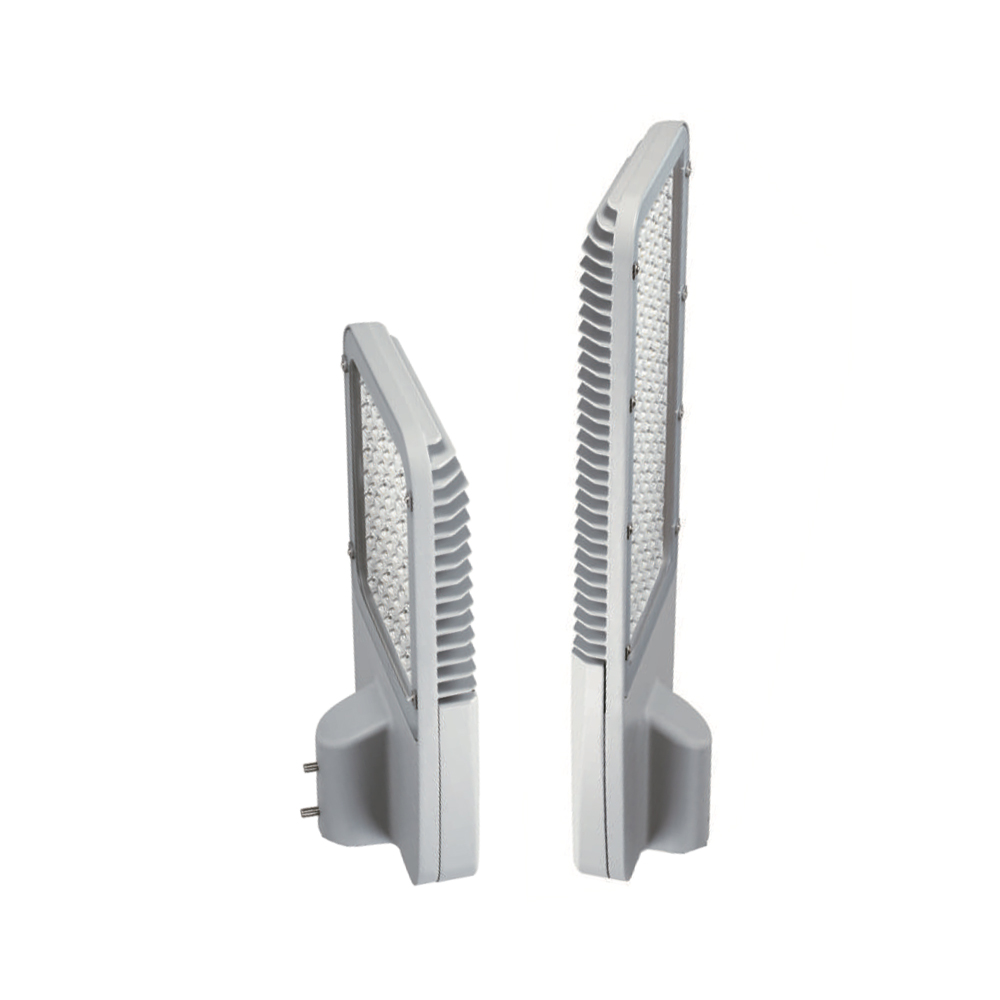

SKX-LD-FF Series LED Street Light (60-300W)
High-Performance Roadway Lighting Solution

Product Overview

The SKX-LD-FF series delivers superior illumination for urban roads, highways, and public spaces with its advanced thermal management and customizable optics. Engineered for durability and efficiency, these luminaires are ideal for demanding outdoor environments.

Technical Specifications

1. Electrical & Optical Performance

Parameter 60-100W 120-180W 200-300W
Input Voltage AC90-305V, 50/60Hz
Power Factor >0.95
Luminous Efficacy 110-150 lm/W
LED Type 3030/5050 SMD (Lumileds/CREE)
LED Configuration 60W: 72pcs (3030) / 36pcs (5050) 180W: 216pcs (3030) / 108pcs (5050) 300W: 360pcs (3030)
CCT Options 2700K-6500K (Customizable)
CRI >70 (Standard), >80 (Optional)
Beam Angle 70°×140° (Standard), Customizable

2. Mechanical Design

Feature Specification
Housing Material ADC12 Die-cast Aluminum
Lens Material 5mm Tempered Glass + Anti-UV PC Reflector
Thermal Conductivity 96W/M.K
Protection Rating IP65 (Full silicone sealing)
Impact Resistance IK08

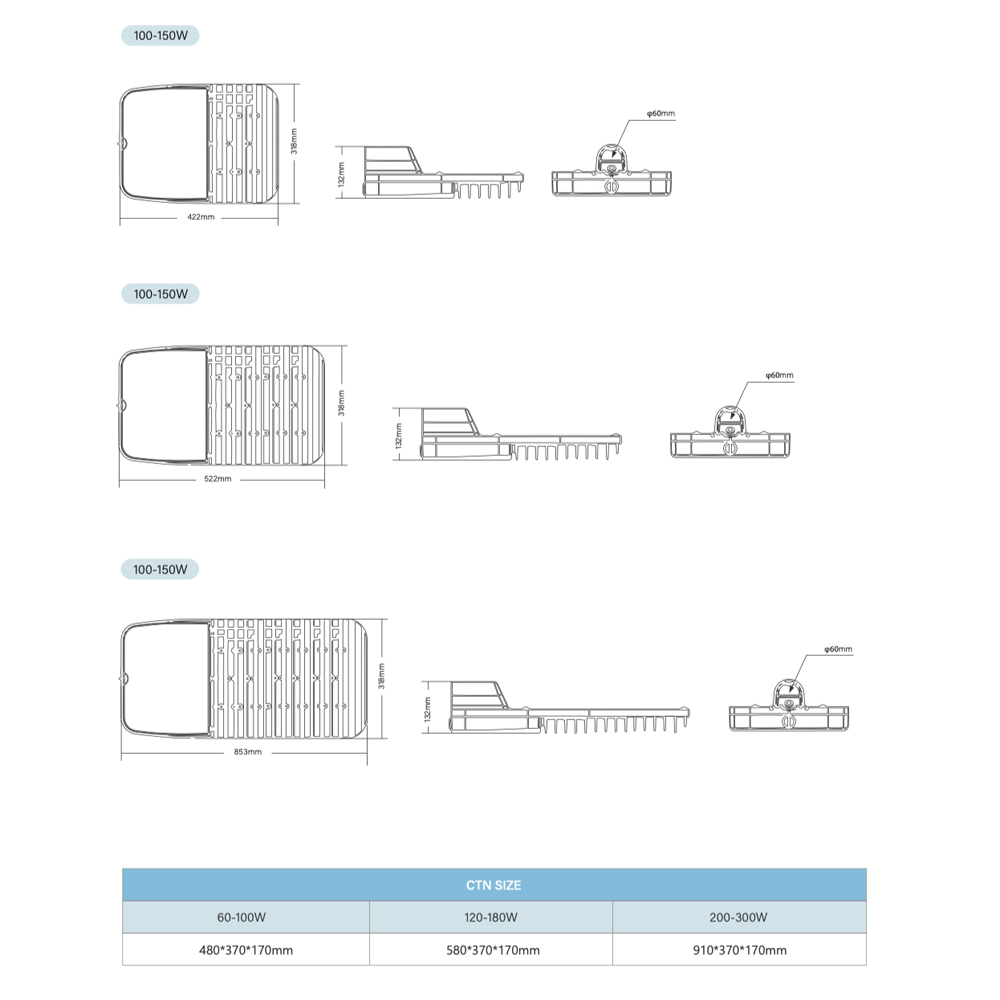

3. Dimensions & Weight

Model Fixture (L×W×H) Package (L×W×H) Weight
60-100W 480×370×170mm 580×370×170mm 6.2kg
120-180W 580×370×170mm 680×370×170mm 8.5kg
200-300W 910×370×170mm 910×370×170mm 12.0kg

4. Thermal Performance

  • Junction Temperature: <65°C at 45°C ambient

  • Hot-Cold Zone Separation: Extends LED lifespan to 50,000+ hours

  • Heat Dissipation: Optimized fin structure

Key Features

✔ Precision Optics

  • Darkoo anti-glare lens for uniform light distribution (UGR<19)

  • Optional Type II, III, or V beam patterns

✔ Smart-Ready Design

  • Compatible with 0-10V/DALI dimming

  • Optional photocell/motion sensors

✔ Rugged Construction

  • Corrosion-resistant powder coating

  • Streamlined windproof design (withstands 60m/s winds)

✔ Easy Maintenance

  • Tool-free access to LED modules and drivers

  • Field-replaceable components

Packaging & Logistics

Model CTN Qty 20'GP 40'HQ Pallet Loading
60-100W 1 2368 5751 24
200-300W 1 1054 2560 14

Packaging Features:

  • Double-layer corrugated boxes with foam protection

  • Waterproof inner lining

  • QR code tracking

Certifications & Warranty

  • Safety: CE, RoHS, IEC 60598-1

  • Reliability: LM-80 & TM-21 verified

  • Warranty: 5 years (extendable to 7 years)

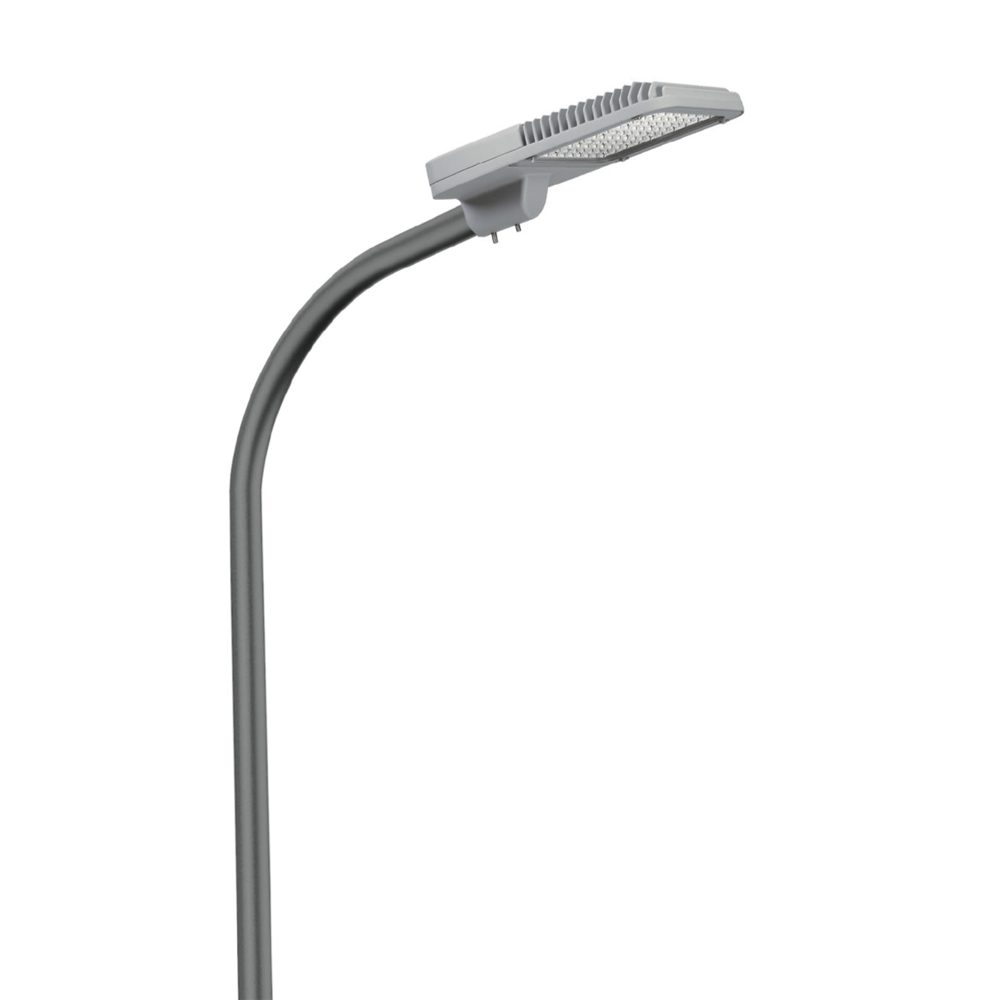

Recommended Applications

  • Highways: 200-300W @ 10-12m poles

  • Urban Roads: 120-180W @ 7-10m

  • Residential Areas: 60-100W @ 4-7m
