SKX-ST-YZ-TX25 Series 50W | 100W | 150W | 200W LED Street Lights

SKX-ST-YZ-TX25 Series 50~300W LED Street Light – Durable, Weather‑Proof & Smart‑Control Outdoor Fixture

P/N: SKX-ST-YZ-TX25 Series

Power: 50W/100W /150W / 200W / 300W

Input Voltage: AC 85-265Vac; 50/60Hz

Luminous efficiency: upto 160lm/W

Die-cast Aluminum housing

Lifetime: 50,000 hrs

IP65 IK08 CE

Send Email

Product Detail

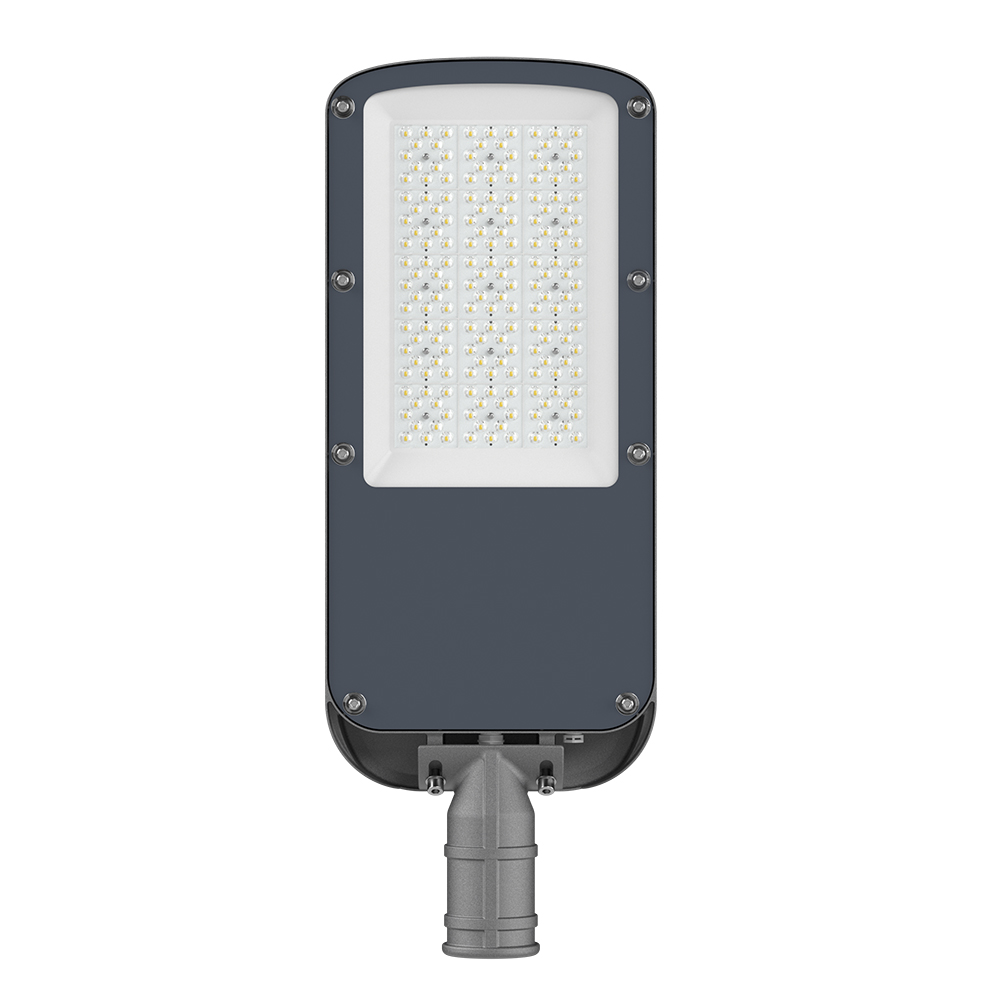

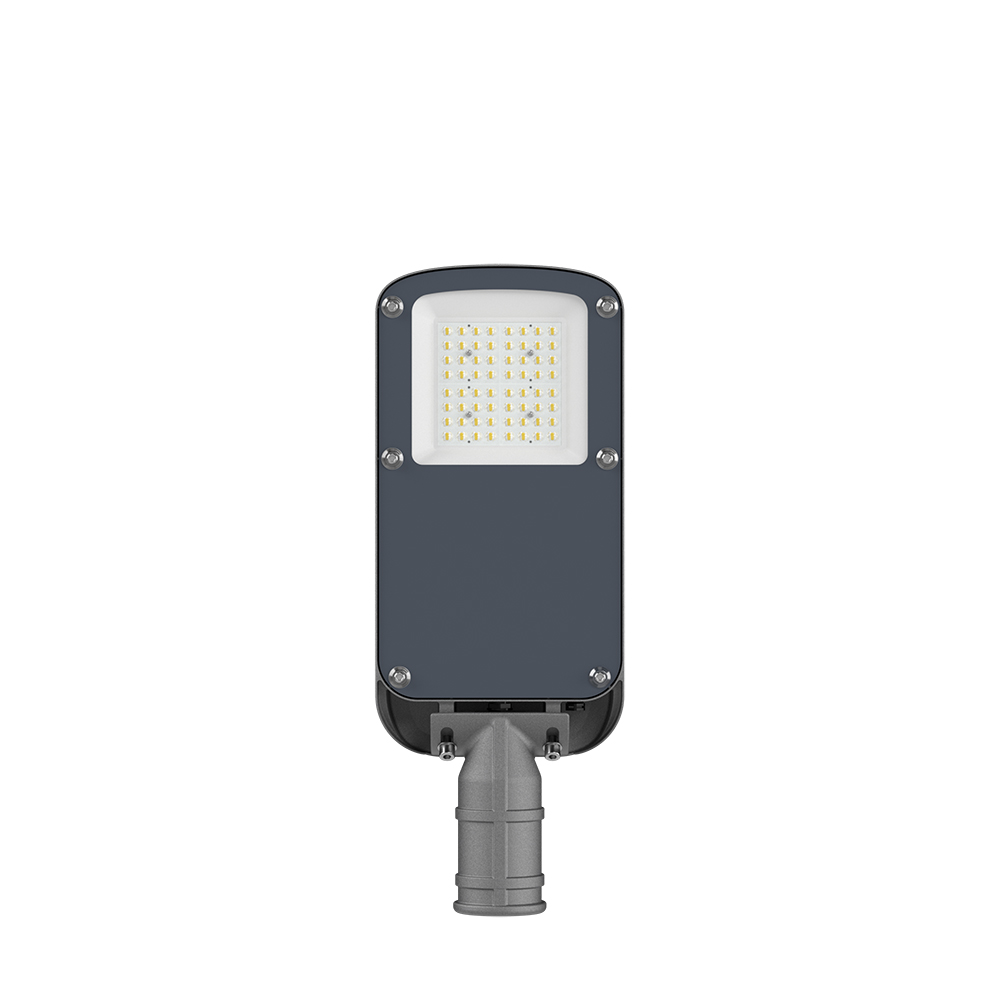

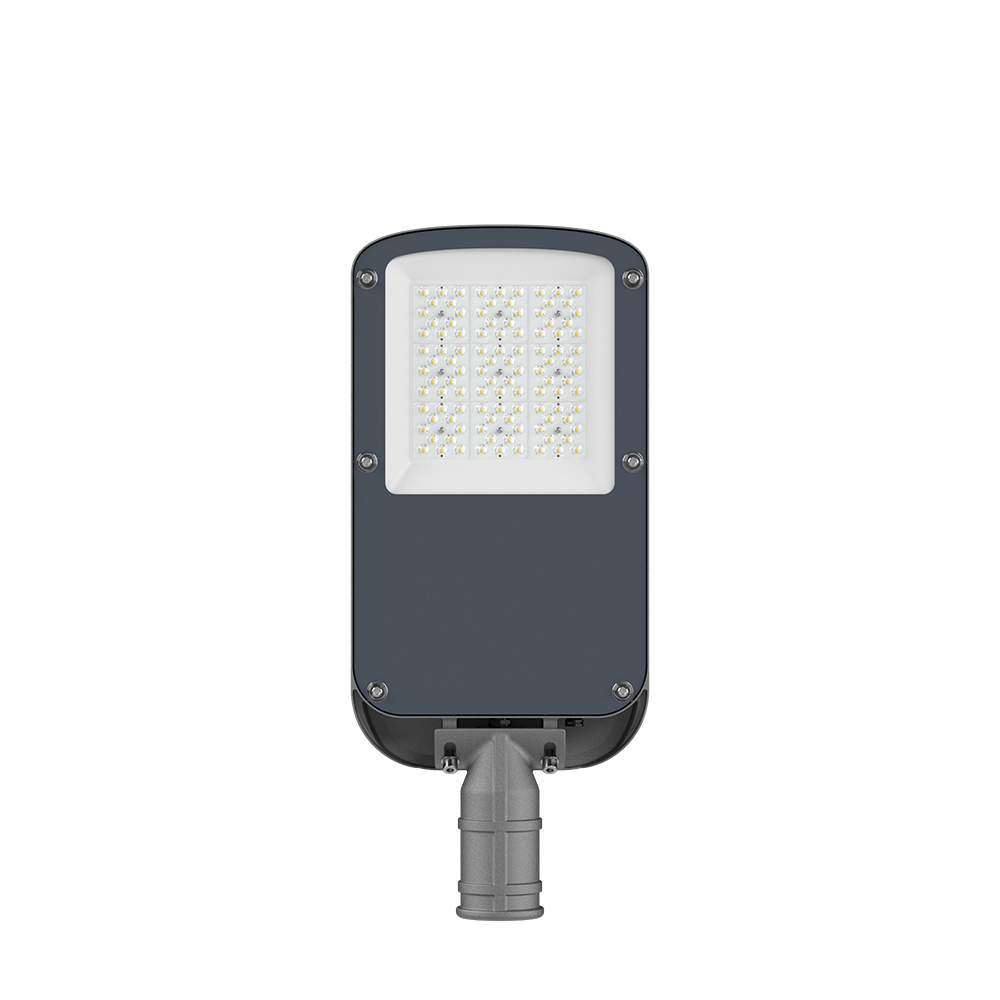

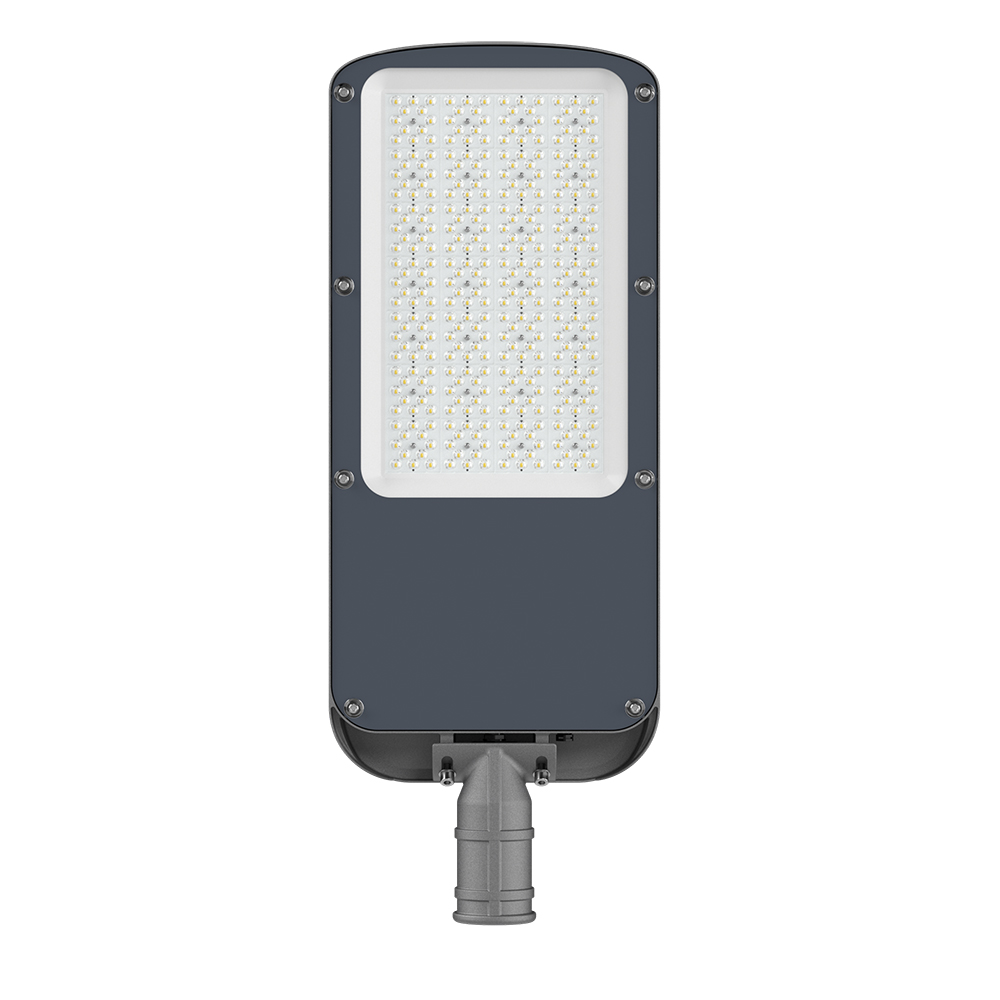

LED Street Light – SKX-ST-YZ-TX25 Series (50W–300W)
Professional-Grade Road Lighting Solutions

Product Overview

The SKX-ST-YZ-TX25 series represents the latest in high-efficiency LED street lighting technology, offering five power options from 50W to 300W. With industry-leading thermal management and optical performance, these luminaires deliver superior illumination for various outdoor applications.

Complete Product Specifications

1. Core Specifications

Parameter Specifications

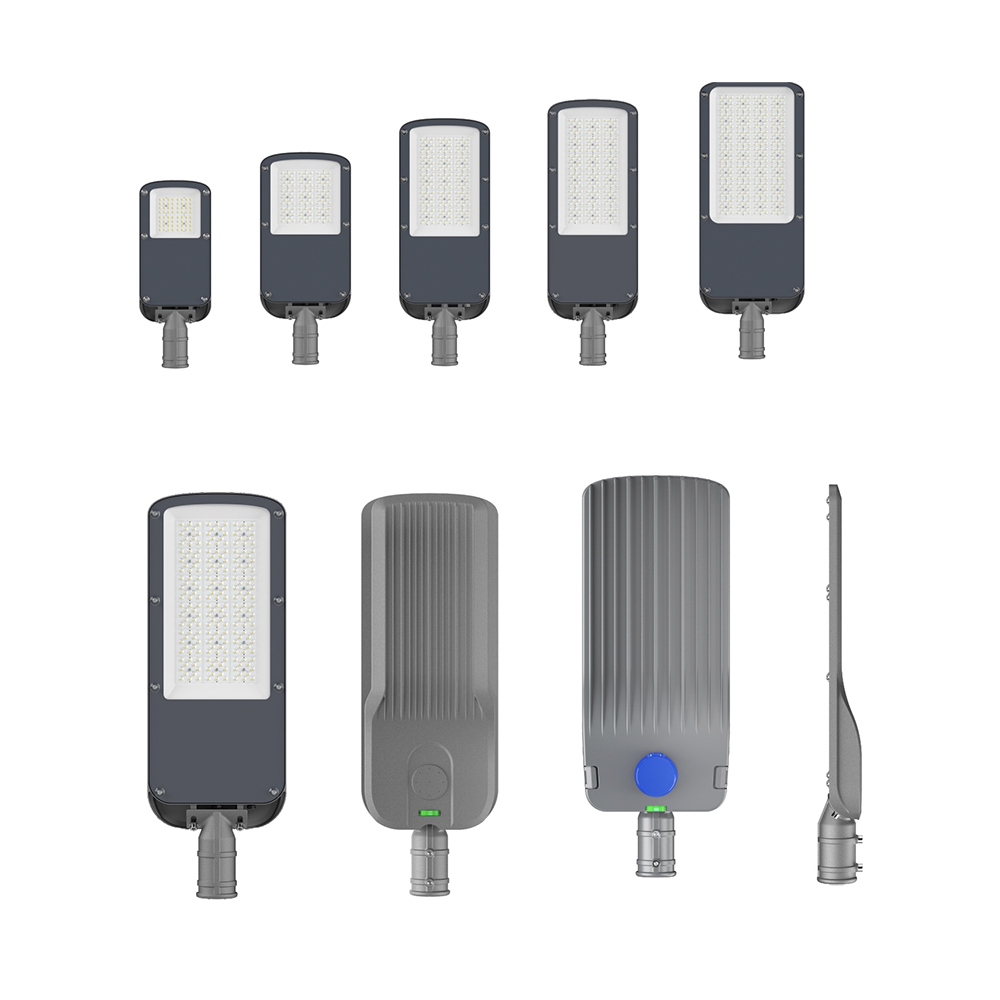

Model Range 50W/100W/150W/200W/300W
Input Voltage AC85-265V, 50/60Hz
Power Factor >0.95
System Efficacy Up to 160 lm/W
LED Options 3030 SMD (All models)/5050 SMD (50W-150W)
Housing Material ADC12 Die-cast Aluminum
Lens Material Tempered Glass (5mm)
Protection Rating IP65
Impact Rating IK08
CCT Options 2700K-6500K (Customizable)
CRI >70 (Standard), >80 (Optional)
Warranty 5 Years

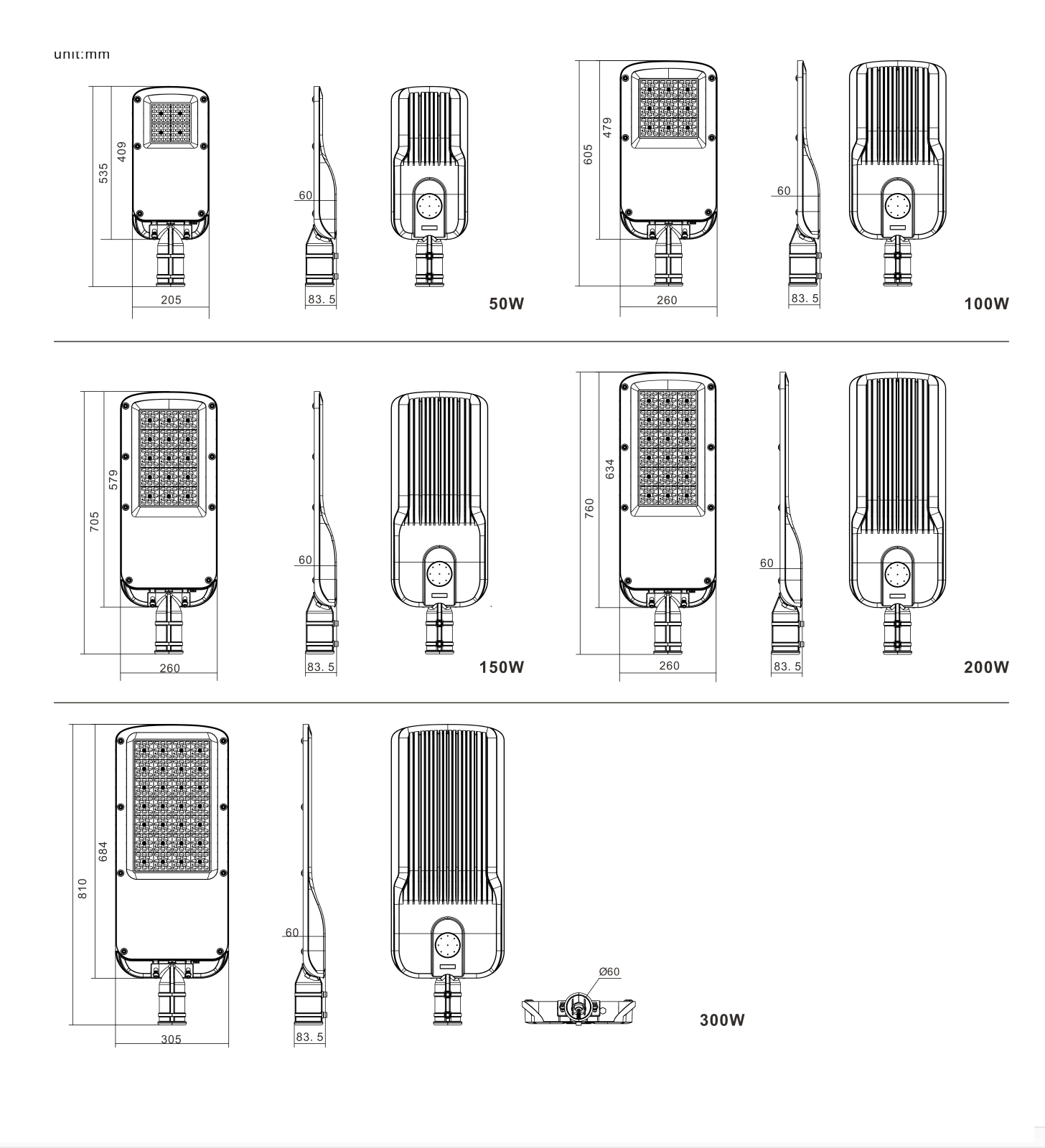

2. Dimensional Data

Model   Fixture Dimensions (L×W×H) Package Dimensions (cm) Weight (kg)
TX25-50W   525×330×83.5mm 59×21.5×10 5.0
TX25-100W   540×330×83.5mm 63×27×10 6.2
TX25-150W   579×330×83.5mm 73×27×10 7.5
TX25-200W   600×330×83.5mm 78×27×10 8.8
TX25-300W   760×330×83.5mm 83×32×10 10.5

3. LED Configuration Details

Power 3030 SMD 5050 SMD
50W 104pcs (13B5C/8B8C) 60pcs (3B5C/12B2C)
100W 176pcs (22B5C/14B8C) 112pcs (7B8C/27B2C)
150W 288pcs (36B5C/23B8C) 180pcs (11B8C/45B2C)
200W 344pcs (43B5C/27B8C) N/A
300W 336pcs (42B8C) N/A

4. Optical Performance

  • Standard Beam Angle: 70°×140°

  • Light Distribution: Type II, III, V available

  • Optical Lens: Darkoo anti-glare PC lens

  • Uniformity: >0.7

  • Glare Control: UGR<19

5. Thermal Management

  • Thermal Conductivity: 96W/M.K

  • Junction Temperature: <65°C at 45°C ambient

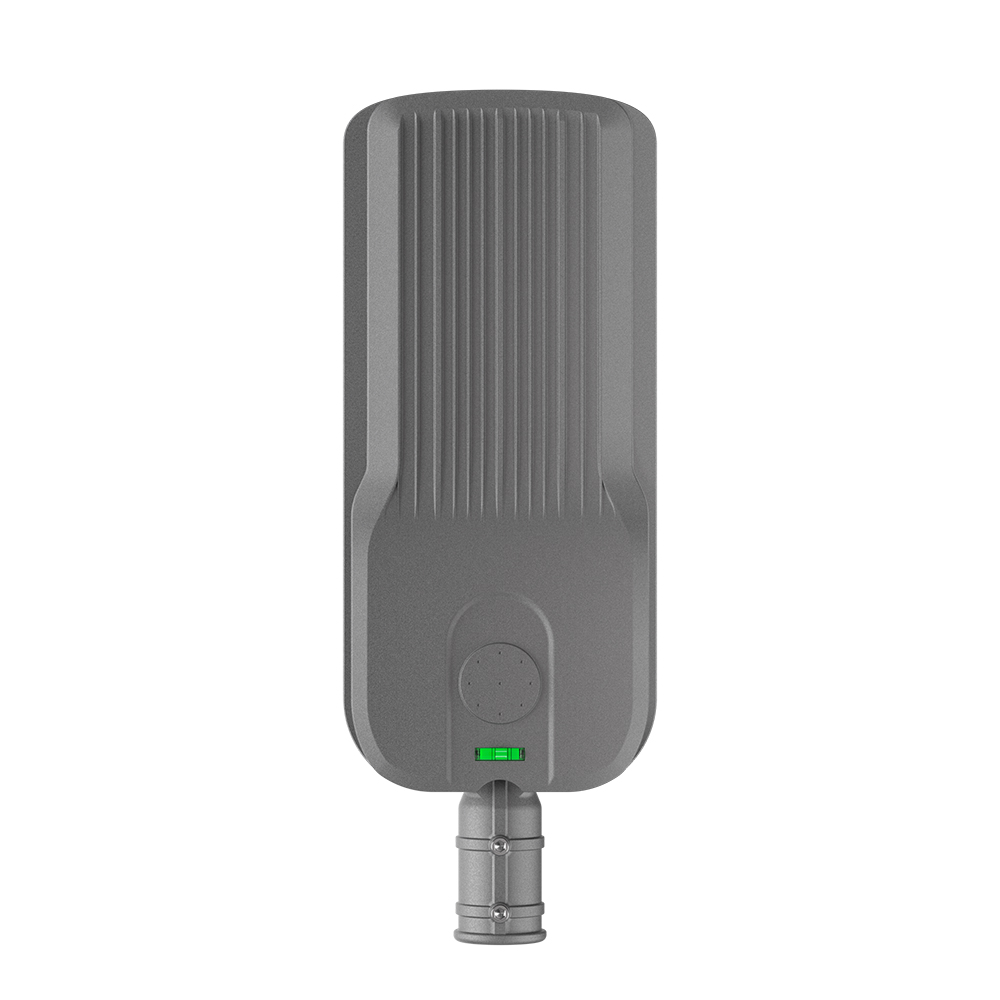

  • Heat Dissipation: Cold-Hot Zone separation design

  • Thermal Interface Material: High-performance thermal grease

Packaging & Logistics

Model CTN Qty 20'GP 40'HQ Pallet Loading
TX25-50W 1 2368 5751 24
TX25-100W 1 1646 3998 20
TX25-150W 1 1421 3450 18
TX25-200W 1 1330 3229 16
TX25-300W 1 1054 2560 14

Packaging Features:

  • Double-wall corrugated cartons

  • EPS foam corner protection

  • Waterproof plastic inner lining

  • Barcode tracking system

Installation Guidelines

Recommended Mounting Heights

Application Power Pole Height Spacing
Pathways/Parking Lots 50W 4-6m 12-15m
Residential Streets 100W 6-8m 15-20m
Urban Arterials 150W 7-9m 18-25m
Main Roads 200W 8-10m 20-30m
Highways/Expressways 300W 10-12m 25-35m

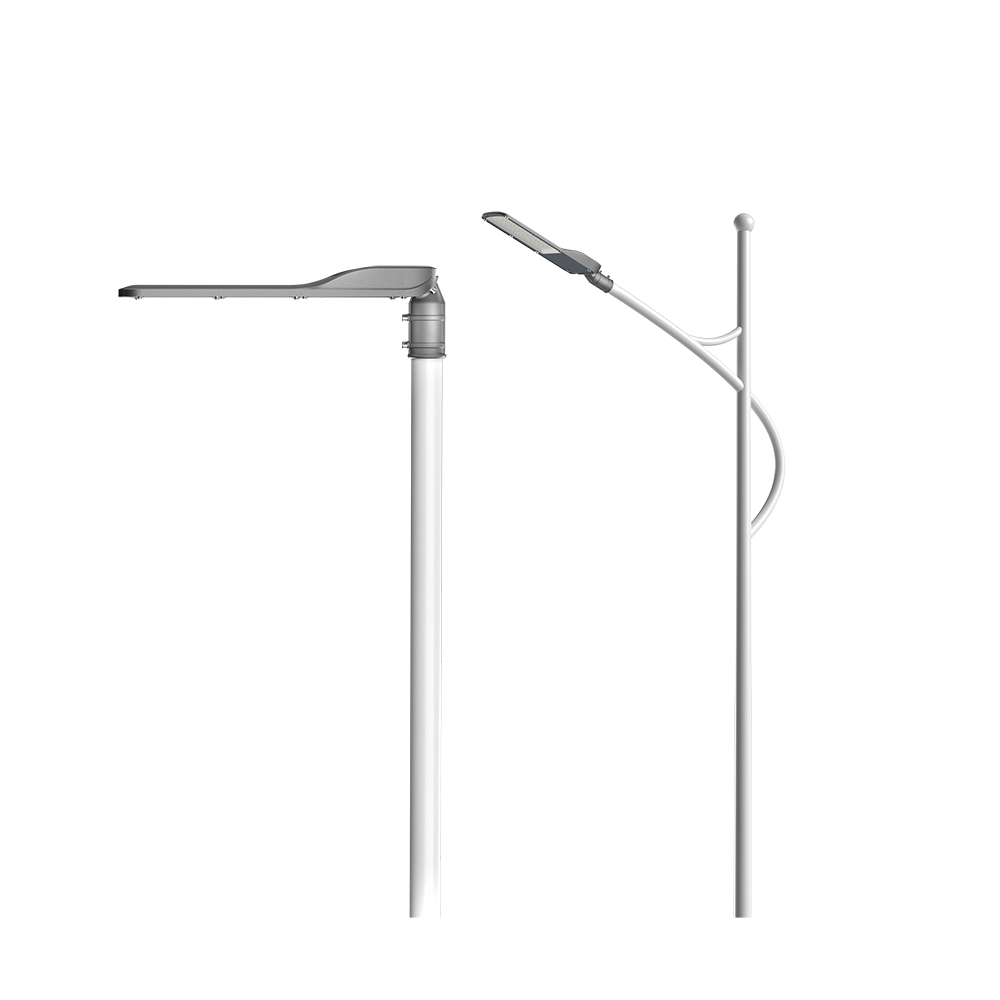

Mounting Options

  • Vertical Installation: Standard pole mounting

  • Horizontal Installation: Wall or bracket mounting

  • Adjustment Range: 90°-180° with built-in spirit level

Smart Control Options

  • Standard: Photocell sensor (Dusk-to-Dawn)

  • Optional:

    • 0-10V/DALI dimming

    • Motion sensors

    • IoT connectivity (4G/LoRa/NB-IoT)

    • Central management system

Certifications & Compliance

  • Safety: CE, ENEC, IEC 60598-1

  • EMC: EN 55015, EN 61000-3-2

  • Environmental: RoHS, REACH

  • Performance: LM-80, TM-21, EN 13201

Ordering Information

Basic Model Number: SKX-ST-YZ-TX25-XXX
(XXX = 050/100/150/200/300)

Options:

  • -CCT: Specify color temperature (2700K-6500K)

  • -CRI: CRI>80 upgrade

  • -D: Dimming version

  • -P: Photocell version

Service & Support

  • Free DIALux lighting design

  • .ies files available

  • 24-month spare parts guarantee

  • On-site technical support (Optional)
