SKX-ST-YZ-TL25 Series 50W | 100W | 150W | 200W Ultra-Efficient LED Street Lights

SKX-ST-YZ-TL25 Series 50~200W LED Ultra-Efficient Road Lighting with 200LM/W Performance

P/N: SKX-ST-YZ-TL25 Series

Power: 50W /100W / 150W / 200W

Input Voltage: AC 85-265Vac; 50/60Hz

Luminous efficiency: upto 200lm/W

Die-cast Aluminum housing

Lifetime: 50,000 hrs

IP65 IK08 CE

Send Email

Product Detail

LED Street Light – SKX-ST-YZ-TL25 Series (50W–200W)
Ultra-Efficient Road Lighting with 200LM/W Performance

Key Features

Industry-Leading 200LM/W Efficacy

  • Advanced 3030/5050/7070 SMD LEDs with LM-80 reports

  • 50% energy savings vs traditional street lights

ThermalMaster™ Cooling System

  • Patented Cold-Hot Zone separation (96W/M.K conductivity)

  • <65°C junction temperature at full load

Military-Grade Protection

  • IP65 waterproof (silicone gel + PC lens)

  • IK08 impact resistant ADC12 aluminum housing

Smart-Ready Design

  • Optional photocell sensor & 0-10V/DALI dimming

  • Free DIALux simulations with .ies files

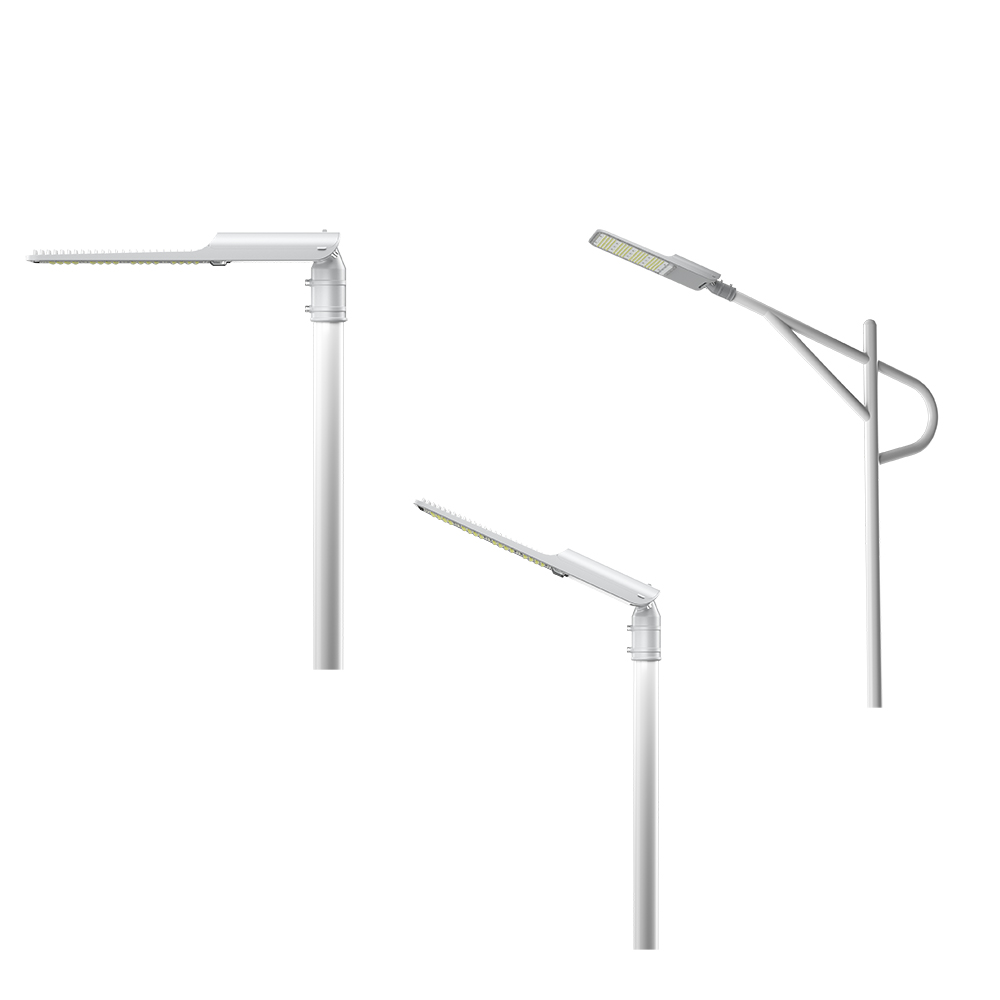

Flexible Installation

  • Vertical/Horizontal mounting (adjustable lampholder)

  • Streamline wind-proof shape for harsh environments

Technical Specifications

Parameter Details
Model SKX-ST-YZ-TL25 Series
Power Options 50W / 100W / 150W / 200W
LED Type 3030 SMD (50W: 72pcs) / 5050 SMD (50W: 36pcs) / 7070 SMD (Optional)
Input Voltage AC85-265V, 50/60Hz
Luminous Efficacy Up to 200 lm/W
Material ADC12 Die-cast Aluminum + Anti-UV PC Lens
CCT/CRI 2700K–6500K (Customizable) / >70 (Standard), >80 (Optional)
Beam Angle 80°×155° (Custom patterns available)
IP Rating IP65
Installation Height 50W: 4–7m / 100W: 5–8m / 150W: 7–9m / 200W: 8–10m

Complete Dimensions

Power Fixture (L×W×H) Package (L×W×H)
50W 24.0×33.0×8.0cm 56×30×12.5cm
100W 39.5×33.0×8.0cm 65×30×12.5cm
150W 40.5×33.0×8.0cm 74×30×12.5cm
200W 40.5×33.0×8.0cm 83×30×12.5cm

Packaging & Logistics

Power CTN Size Qty/CTN 20'GP 40'GP 40'HQ Gross Weight
50W 56×30×12.5cm 1 1333 2762 3238 4.5kg
100W 65×30×12.5cm 1 1149 2379 2790 5.8kg
150W 74×30×12.5cm 1 1009 2090 2450 6.5kg
200W 83×30×12.5cm 1 900 1863 2185 7.2kg

Applications

  • Expressways & Highways (200W @ 8-10m)

  • Urban Roads (100W-150W @ 5-9m)

  • Parks & Communities (50W @ 4-7m)

Certifications & Services

  • Certified: CE, RoHS, ENEC, IEC 60598-1

  • Warranty: 5 years (extendable)

  • Free Support: DIALux design & LM-80 reports

Safety Notes

  • Professional installation required

  • Use UV-resistant cables for outdoor wiring
