SKX-ST-YZ-TY25 Series 100W | 150W | 200W | 300W LED Street Lights

SKX-ST-YZ-TY25 Series 100~300W LED Street Light – Durable, Weather‑Proof & Smart‑Control Outdoor Fixture

P/N: SKX-ST-YZ-TY25 Series

Power: 100W /150W / 200W / 300W

Input Voltage: AC 85-265Vac; 50/60Hz

Luminous efficiency: upto 180lm/W

Die-cast Aluminum housing

Lifetime: 50,000 hrs

IP65 IK08 CE

Send Email

Product Detail

LED Street Light – SKX-ST-YZ-TY25 Series (100W–300W)
Professional-Grade Lighting for Roads, Parks & Public Spaces

Key Features

Exceptional Thermal Management

  • Advanced FEA-optimized structure with Cold-Hot Zone separation

  • High thermal conductivity (96W/M.K) aluminum body + thermally conductive PCB

  • Auto power-off safety switch when opened

Ultra-High Efficiency

  • 180 lm/W efficacy with 3030/5050 SMD LEDs (LM-80 certified)

  • Wide voltage input: AC85-265V, 50/60Hz, PF>0.95

Rugged & Safe Design

  • ADC12 die-cast aluminum housing with anti-corrosion coating

  • IP65 waterproof (silicone gel seals + tempered glass)

  • Optional SPD surge protection and photocell sensor

Smart-Ready Lighting

  • Supports 0-10V/DALI dimming

  • Free DIALux simulations and .ies files

Technical Specifications

Parameter Details
Model SKX-ST-YZ-TY25 Series
Power Options 100W / 150W / 200W / 300W
LED Type 3030 SMD (100W: 144pcs) or 5050 SMD (100W: 72pcs)
Input Voltage AC85-265V, 50/60Hz
Luminous Efficacy Up to 180 lm/W
Material ADC12 Die-cast Aluminum + Tempered Glass
CCT/CRI 2700K–6500K (Customizable) / >70 (Standard), >80 (Optional)
Thermal Conductivity 96W/M.K
IP Rating IP65
Installation Height 100W: 6–8m / 300W: 9–12m

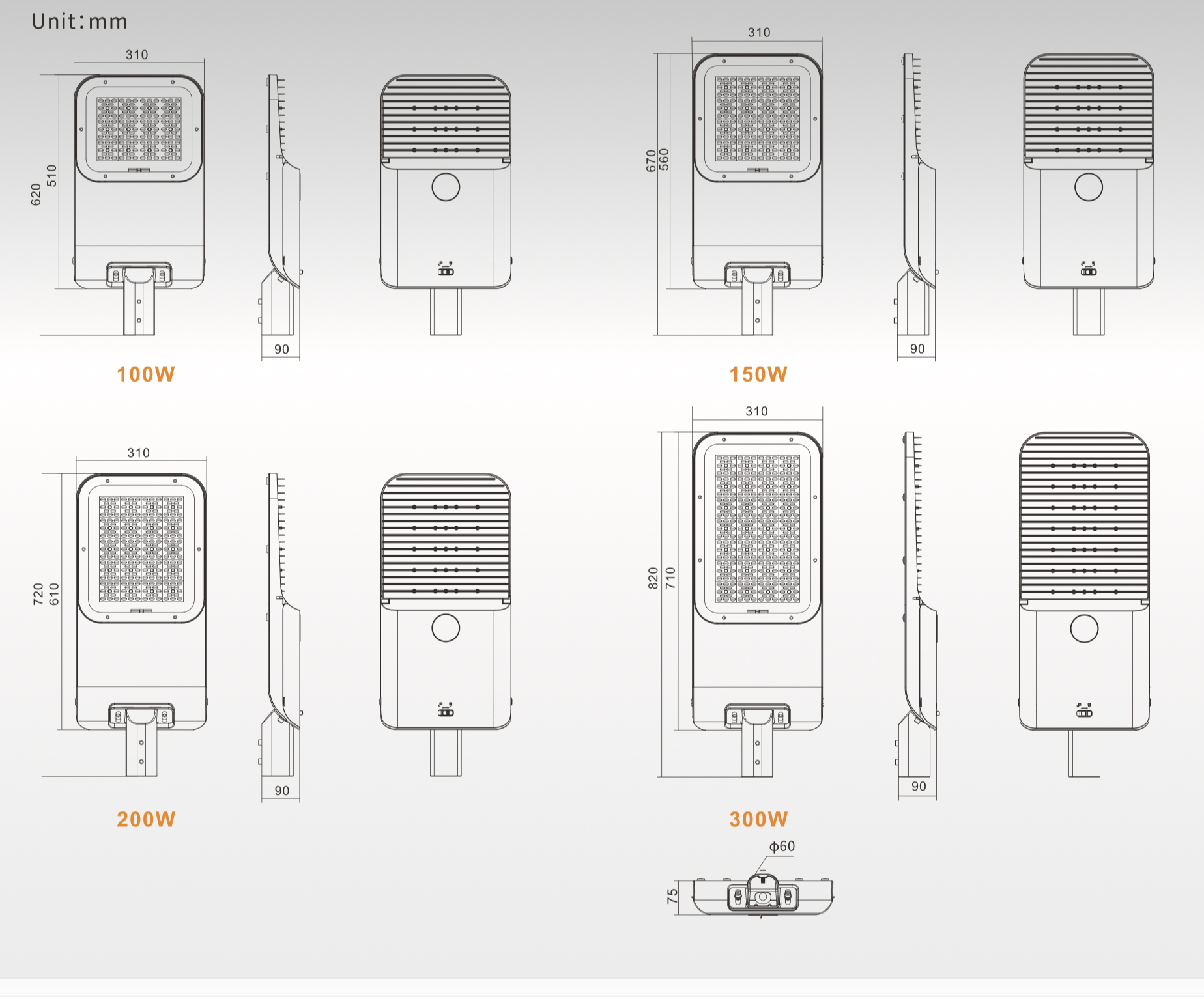

Complete Dimensions

Power Fixture (L×W×H) Package (L×W×H)
100W 31.0×33.0×9.5cm 66.5×37×12cm
150W 44.0×33.0×9.5cm 71.5×37×12cm
200W 60.0×33.0×9.5cm 81.5×37×12cm
300W 96.0×33.0×9.5cm 86.5×37×12cm

Packaging & Logistics

Power CTN Size Qty/CTN 20'GP 40'GP 40'HQ Gross Weight
100W 66.5×37×12cm 1 948 1964 2303 5.2kg
150W 71.5×37×12cm 1 882 1807 2142 6.0kg
200W 81.5×37×12cm 1 774 1603 1879 7.5kg
300W 86.5×37×12cm 1 729 1510 1771 9.0kg

Applications

  • Highways & Urban Roads

  • Residential Areas & Communities

  • Parks, Squares & Pedestrian Zones

Certifications & Services

  • Certified: CE, RoHS, ENEC, IEC 60598-1

  • Warranty: 5 years (extendable to 7 years)

  • Free Support: DIALux lighting design & .ies files

Safety Notes

  • Professional installation required

  • Do not stare directly at LEDs

  • Ensure waterproof cable connections for outdoor use
