SKX-LD-M-A18 Series 100W | 160W | 200W | 250W | 300W LED Street Lights

SKX-LD-M-A18 Series 100~300W LED Street Light – Weather‑Proof & Smart‑Control Outdoor Fixture

P/N: SKX-LD-M-A18 Series

Power: 100W /160W / 200W / 250W / 300W

Input Voltage: AC 90-305Vac; 50/60Hz

Luminous efficiency: 110-150lm/W

Die-cast Aluminum housing

Lifetime: 50,000 hrs

IP65 IK08 CE

Send Email

Product Detail

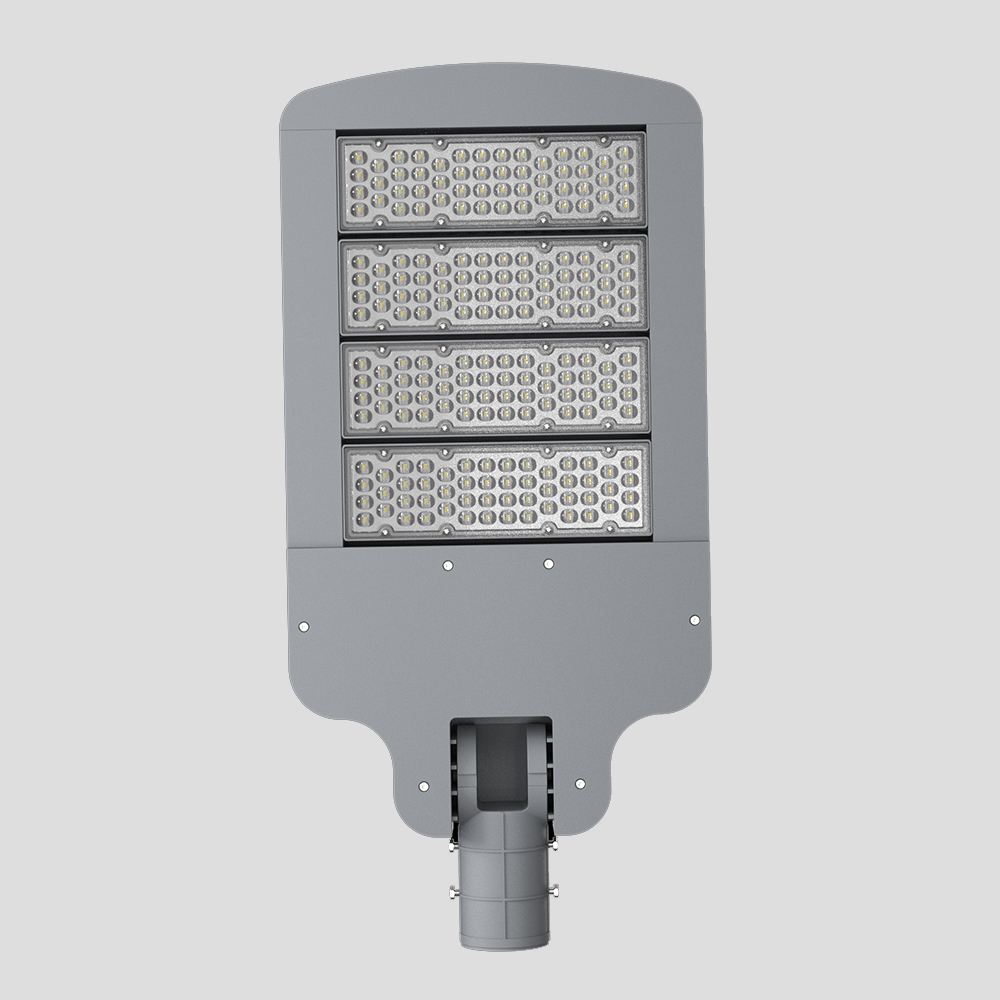

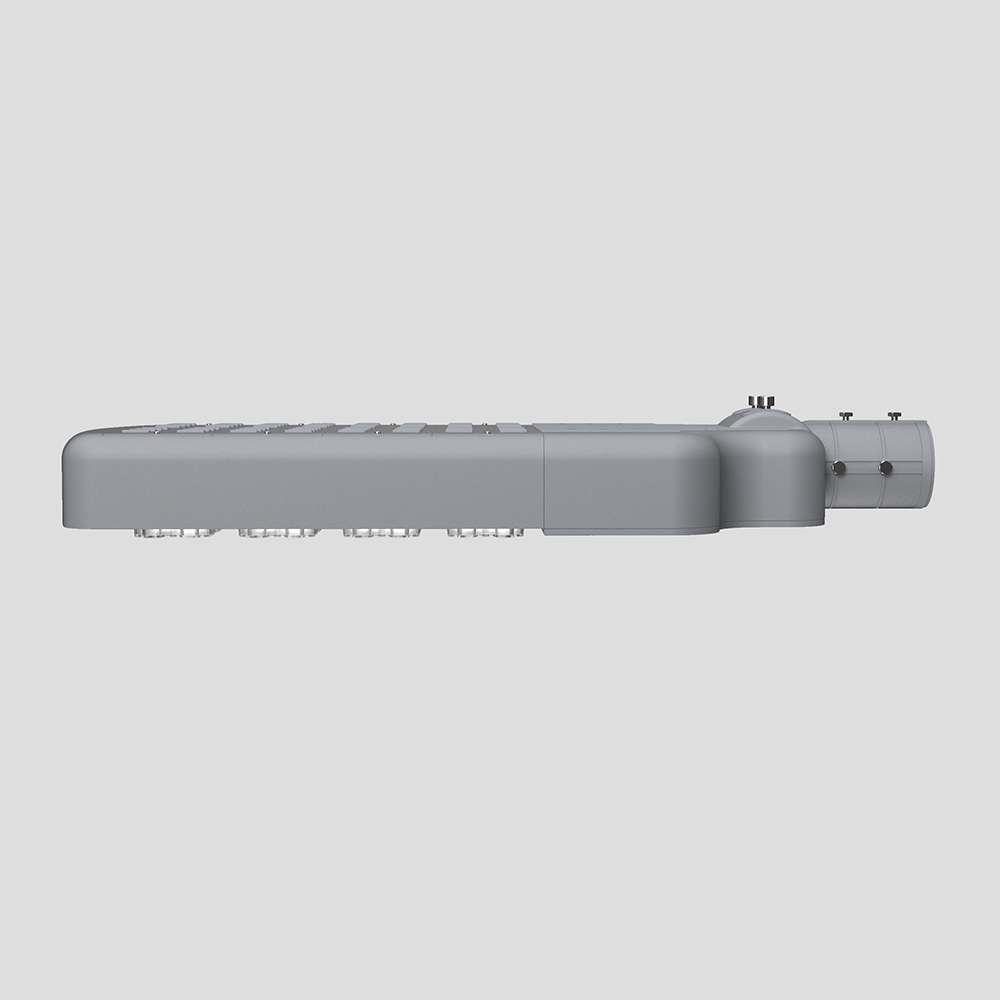

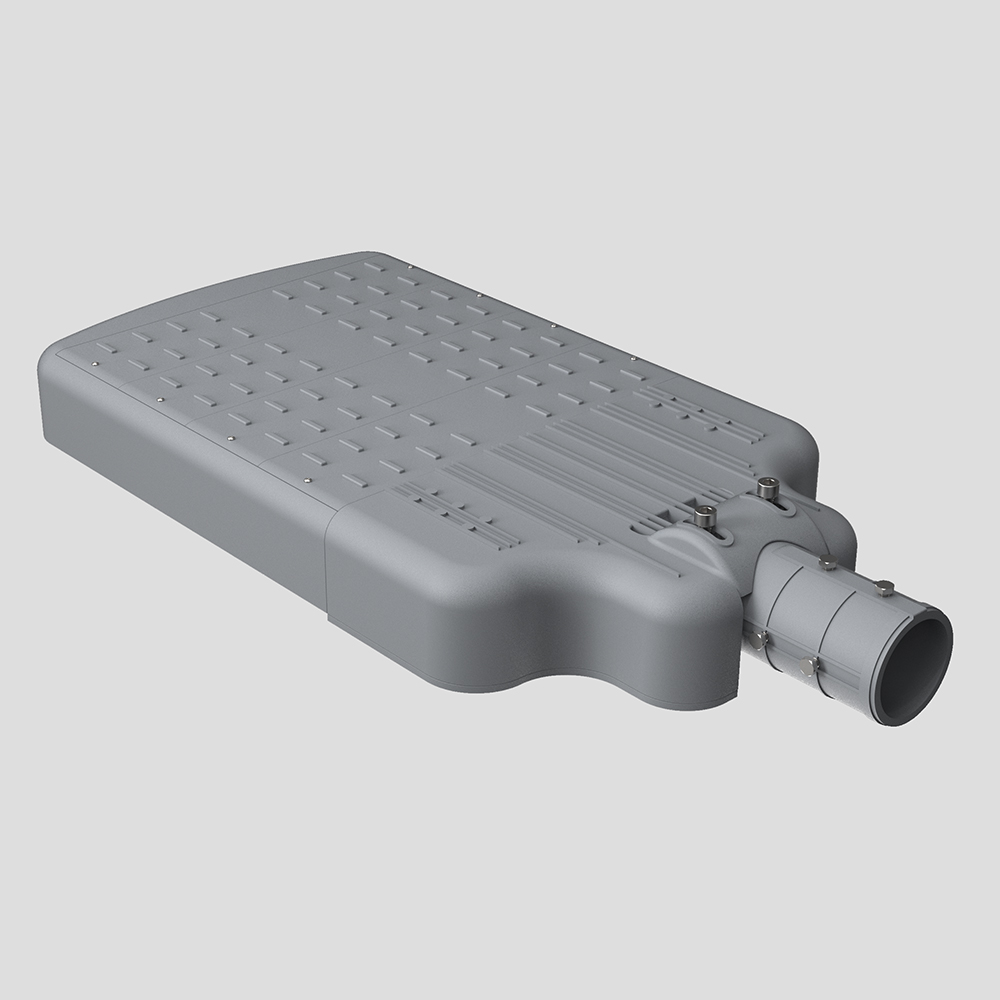

LED Street Light SKX-LD-M-A18 (100–300W)
Key Features
Exceptional Energy Efficiency
≥130 lm/W system efficacy — reduces energy consumption by up to 70% compared to traditional HID lamps.

Robust Construction
High-strength die-cast aluminum housing (ADC12) with anti-corrosion coating; IP65-rated for dust/water resistance and IK08 impact resistance.

Advanced Optical Design
Precision-engineered optics with customizable beam distribution (Type II, III, or V) for uniform illumination and minimal glare.

Modular & Scalable Design
LED modules vary by power (100–300W) while maintaining uniform dimensions; tool-free access for quick maintenance.

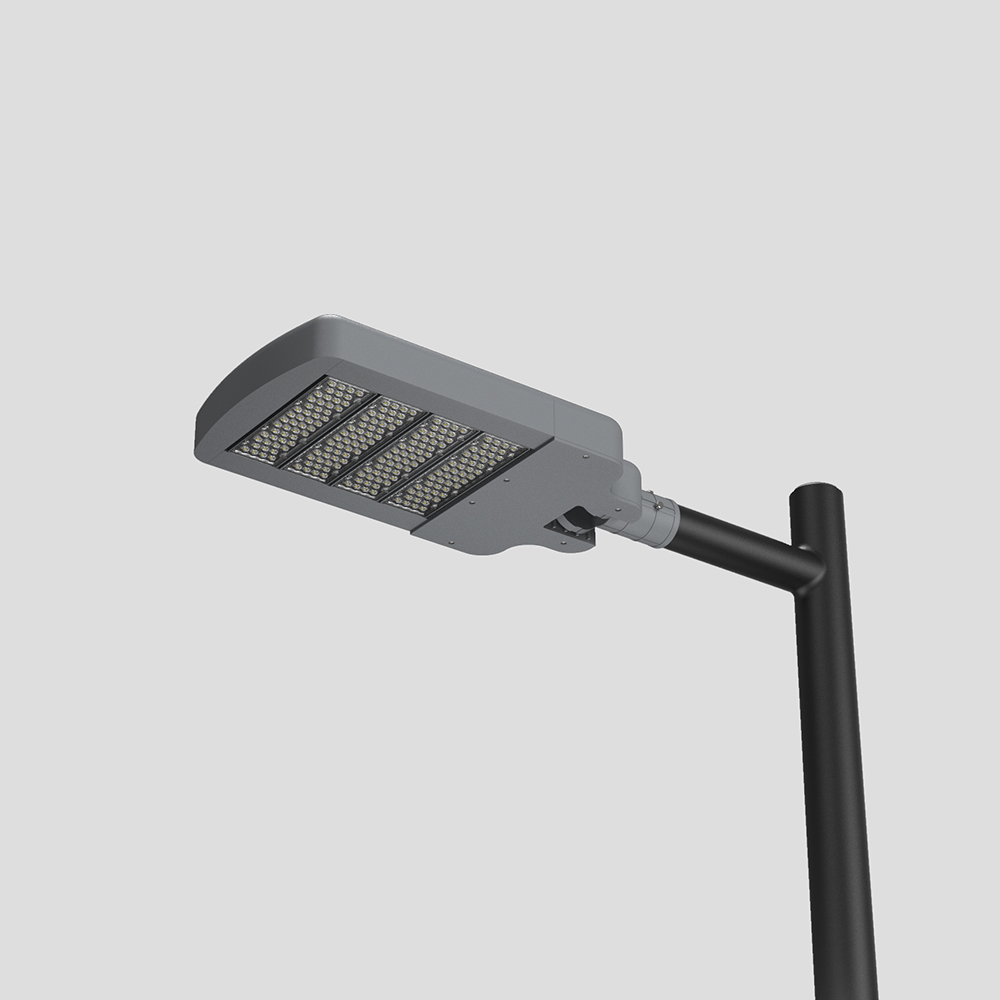

Versatile Mounting
Compatible with ⌀60–76 mm poles; supports side-mount, top-mount, or bracket installations.

Smart Control Compatibility (Optional)
Supports 0–10V/DALI dimming; optional photocell, microwave sensor, or IoT integration for remote management.

Technical Specifications

Parameter	Details
Model No.	SKX-LD-M-A18
Power Range	100W / 160W / 200W / 250W / 300W
Input Voltage	AC 90–305V, 50/60Hz
Power Factor	>0.95
Luminous Efficacy	110–150 lm/W (system)
LED Chips	Lumileds / CREE / Customizable
Material	ADC12 Die-cast Aluminum
CCT	2700–6500K (Adjustable or Customizable)
CRI	>70 / 80
Driver Options	Meanwell / Inventronics / Customizable
Lifetime	50,000 hours (L70)
IP Rating	IP65
Fixture Dimensions (L×W×H)	All Models: 330mm (W) × 95mm (H) × Length: 100W: 545mm / 150W: 660mm / 200W: 730mm / 250W: 800mm / 300W: 870mm
Package Dimensions (L×W×H)	100W: 590×330×110mm / 150W: 660×330×110mm / 200W: 730×330×110mm / 250W: 800×330×110mm / 300W: 870×330×110mm

Notes

Unified Design: Only LED module quantity varies by power; housing dimensions remain consistent (W:330mm, H:95mm).
Customization: CCT, beam angles, and smart controls can be tailored to project needs.
Compliance: Meets IEC, EN, and RoHS standards for safety and environmental protection.
Warranty: 5-year warranty on LED modules and drivers.
