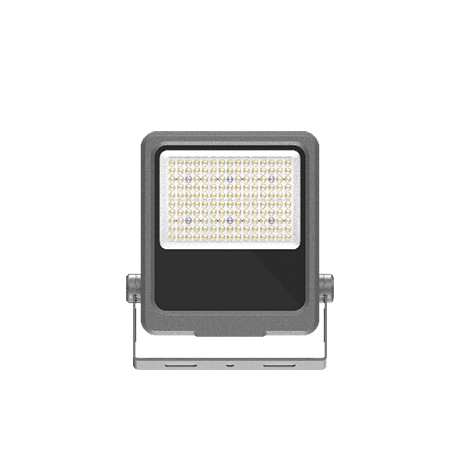

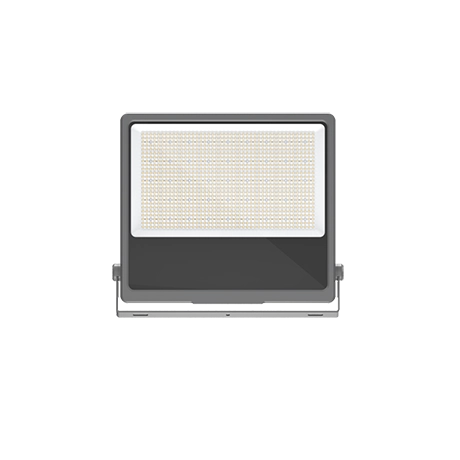

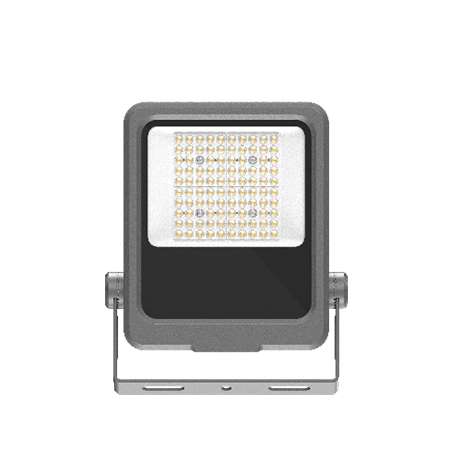

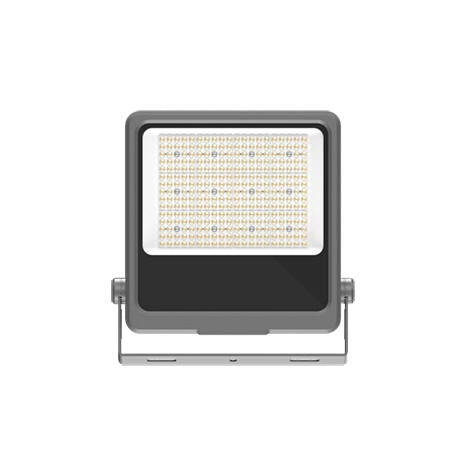

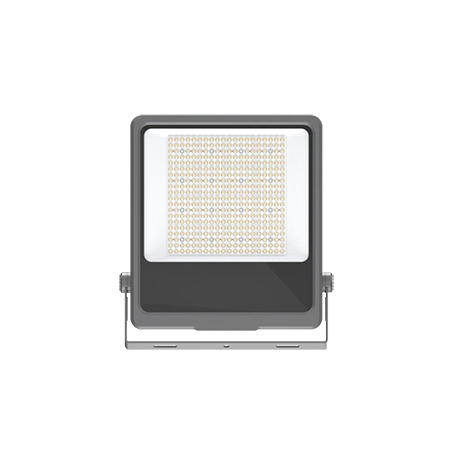

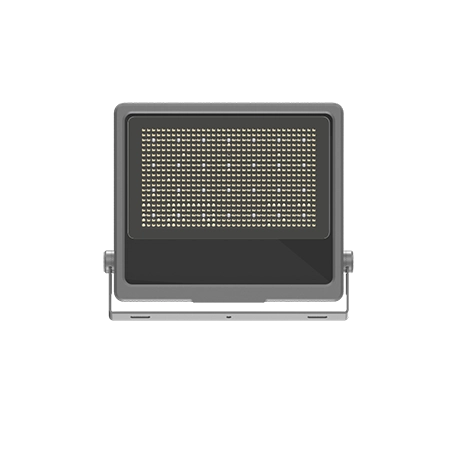

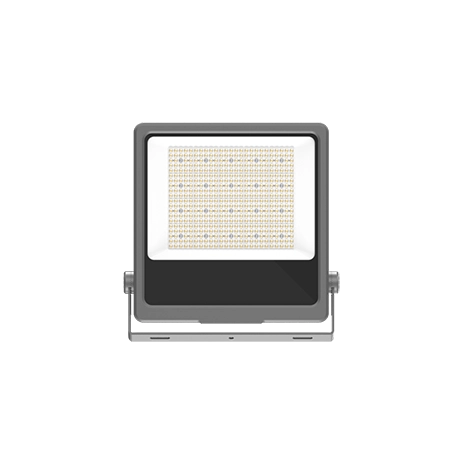

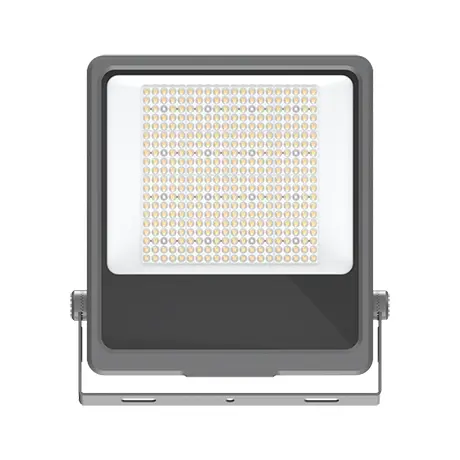

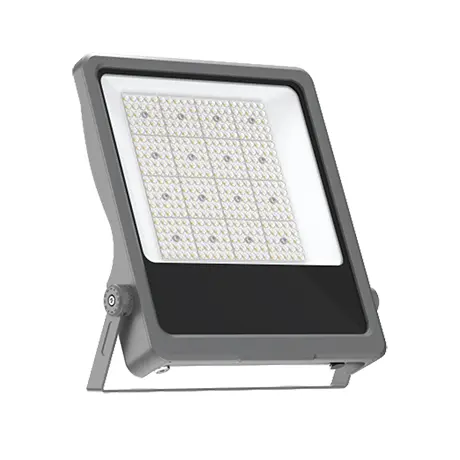

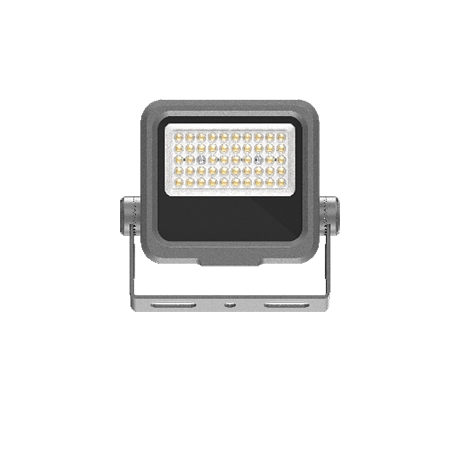

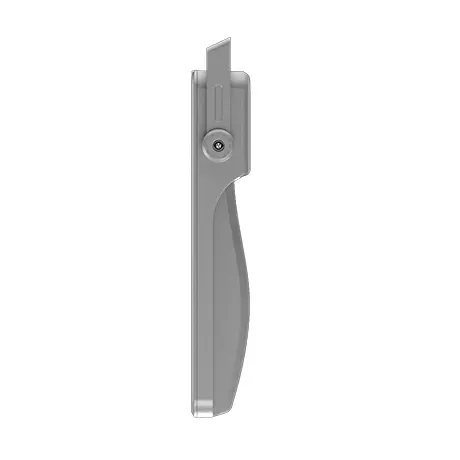

SKX-DF1 30W-600W LED Flood Light Series
HQ lighting High-performance LED flood light 30–600W with front-frame design, IP66 waterproof, anti-glare lens, and precision beam control
P/N: SKX-DF1 Series
LED Flood Light
Power: 30-600W
Input Voltage: AC 85-265Vac; 50/60Hz
Luminous efficiency: 110lm/W

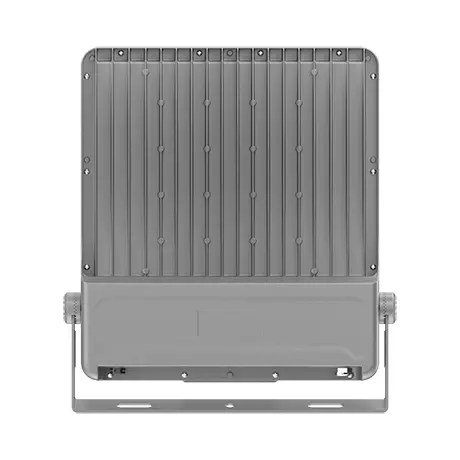

Die-cast Aluminum housing
Lifetime: 5,000 hrs
IP65
Product Detail
Product Overview
The HQ Lighting DF1 Flood Light Series (Front Frame Type) offers a perfect balance of performance, design, and reliability.
Built with a die-cast aluminum housing and tempered glass front frame, it ensures excellent waterproofing, anti-corrosion, and aesthetic integration for architectural and outdoor applications.
Available from 30W to 600W, the DF1 delivers high luminous efficiency, optional beam angles, and flexible mounting configurations for professional lighting projects.
Key Features
-
Power range: 30W / 50W / 100W / 150W / 200W / 300W / 400W / 600W
-
Front-frame design — elegant and strong mechanical protection
-
IP65 waterproof
-
Die-cast aluminum housing + tempered glass for durability
-
Optional symmetrical/asymmetrical light distribution
-
Adjustable mounting bracket, easy to install
-
Compatible with photocell or dimming controls
-
Long lifespan >50,000 hours
Applications
Building façades • Commercial plazas • Billboards • Parking areas • Stadiums • Industrial facilities • Public spaces
Technical Specifications (SPEC)
| Model | Power | Voltage | PF | Efficiency (lm/W) |
|
CRI | Beam Options |
|
IP | Lifespan (hrs) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SKX-DF1-30 | 30 W | AC 85–265 V | ≥ 0.9 | 110 |
|
≥ 80 | 60° / 90° / 120° |
|
IP65 | 50,000 | 193 × 187 × 50 |
|
SKX-DF1-50 SKX-DF1-100 |
50 W 100 W |
" ″ |
" ″ |
" ″ |
|
" ″ |
" ″ |
|
" ″ |
" ″ |
231 × 287 × 50 253 × 290 × 56 |
| SKX-DF1-150 | 150 W | ″ | ″ | ″ |
|
″ | ″ |
|
″ | ″ | 326 × 342 × 50 |
| SKX-DF1-200 | 200 W | ″ | ″ | ″ |
|
″ | ″ |
|
″ | ″ | 365 × 402 × 62 |
| SKX-DF1-300 | 300 W | ″ | ″ | ″ | ″ | ″ |
|
″ | ″ | 430 × 438 × 62 | |
|
SKX-DF1-400 SKX-DF1-600 |
400 W 600 W |
" ″ |
" ″ |
" ″ |
|
" ″ |
" ″ |
|
" ″ |
" ″ |
500 x 436 x 66 602 × 534 × 66 |
Optical System
-
Precision PMMA lens or tempered glass diffuser
-
Multiple beam configurations: 60° / 90° / 120° / asymmetric
-
Uniform illumination with <5% light decay after 6000 hrs
Mounting Options
-
Adjustable U-shaped bracket (0–180° tilt)
-
Wall-mounted or pole-mounted installation
-
Compatible with junction box or surface conduit entry
FAQ
Q1: What is special about the DF1 front-frame design?
A1: It improves waterproofing and mechanical protection while providing a sleek, architectural look for façades and outdoor areas.
Q2: Can the DF1 be installed horizontally or vertically?
A2: Yes, the adjustable bracket allows full 180° tilt for flexible installation.
Q3: Is it suitable for continuous outdoor operation?
A3: Yes, IP65 ratings ensure long-term durability in rain, dust, or impact conditions.
Q4: Does it support dimming?
A4: 1–10V dimming or photocell control can be configured upon request.
Q5: What type of LED chips are used?
A5: High-brightness Lumileds / CREE SMD LEDs ensure consistent color and high efficiency.
