SKX-TGD-XH-S19 50W-300W LED Flood Light Series
High-efficiency LED flood light, available in 50W to 300W models, with IP66 protection and durable aluminum housing for outdoor and industrial lighting.
P/N: SKX-TGD-XH-S19 Series
LED Flood Light
Power: 50-300W
Input Voltage: AC 90-305Vac; 50/60Hz
Luminous efficiency: 120-150lm/W
Die-cast Aluminum housing
Lifetime: 5,000 hrs
IP65
Product Detail
Product Overview

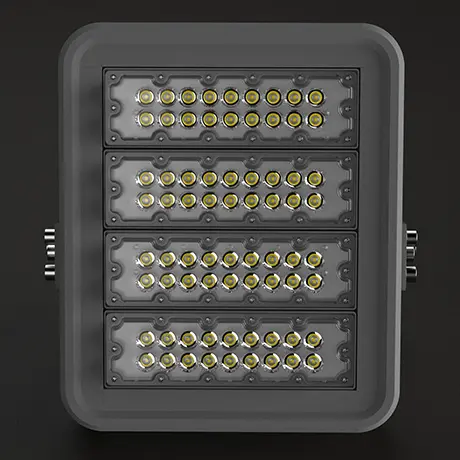

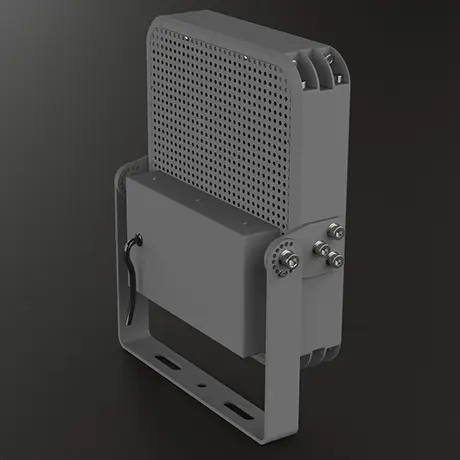

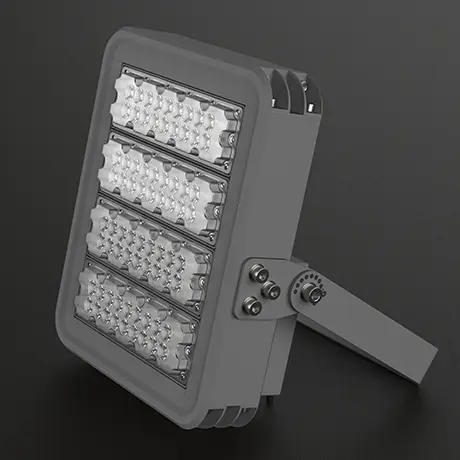

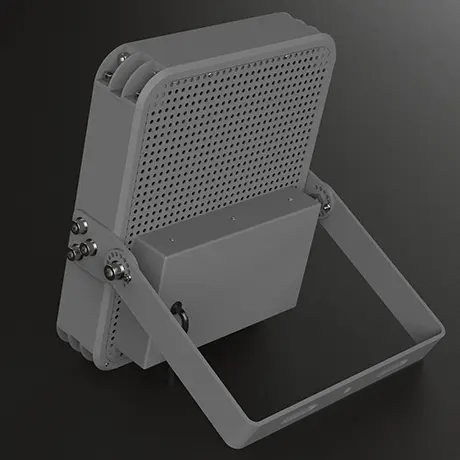

The HQ Lighting SKX-TGD-XH-S19 Flood Light Series is engineered for reliable outdoor illumination, combining high-efficiency LED chips with precision optical lenses and rugged die-cast aluminum housing.
Offering multiple beam angles (Type I–V), this series ensures uniform light distribution and excellent thermal performance.
It is ideal for factories, warehouses, building façades, and parking lots requiring durable and energy-saving lighting.
Key Features
-
Available in five power options: 50W / 100W / 150W / 200W / 250W / 300W
-
High luminous efficiency up to 150 lm/W
-
Die-cast aluminum housing with tempered glass cover
-
IP65 waterproof for harsh outdoor environments
-
Multiple beam patterns (Type I–V) for diverse installations
-
Adjustable mounting bracket for flexible lighting angles
-
Long lifetime > 50,000 hours
Applications
Industrial workshops • Warehouses • Billboards • Stadium perimeters • Outdoor façades • Parking areas
Technical Specifications (SPEC)
| Model | Rated Power | Voltage Input | Power Factor | Luminous Efficiency | CCT (K) | CRI |
|
Protection | Lifespan | Dimensions (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SKX-TGD-XH-S19-50 | 50 W | AC 90–305 V | ≥ 0.95 | 120–150 lm/W | 2700-6500 K | ≥ 70/80 |
|
IP65 | > 50,000 h | 325 × 145 × 120 | |
| SKX-TGD-XH-S19-100 | 100 W | AC 90–305 V | ≥ 0.95 | 120–150 lm/W | 2700-6500 K | ≥ 70/80 |
|
IP65 | > 50,000 h | 325 × 225 × 120 | |
| SKX-TGD-XH-S19-150 | 150 W | AC 90–305 V | ≥ 0.95 | 120–150 lm/W | 2700-6500 K | ≥ 70/80 |
|
IP65 | > 50,000 h | 325 × 305 × 120 | |
|
SKX-TGD-XH-S19-200 SKX-TGD-XH-S19-250 |
200 W
250 W |
AC 90–305 V
AC 90–305 V |
≥ 0.95
≥ 0.95 |
120–150 lm/W
120–150 lm/W |
2700-6500 K
2700-6500 K |
≥ 70/80
≥ 70/80 |
|
|
IP65
IP65 |
> 50,000 h
> 50,000 h |
325 × 385 × 120
325 × 465 × 120 |
|
SKX-TGD-XH-S19-300 |
300 W | AC 90–305 V | ≥ 0.95 | 120–150 lm/W | 2700-6500 K | ≥ 70/80 |
|
|
IP65 | > 50,000 h | 325 × 545 × 120 |
FAQ
Q1: Does the SKX-TGD-XH-S19 support multiple beam distributions?
A1: Yes, five beam patterns (Type I–V) are available to suit different applications.
Q2: Is it suitable for continuous outdoor operation?
A2: Absolutely. With IP66 waterproofing and corrosion-resistant housing, it performs reliably in all weather conditions.
Q3: What is the mounting method?
A3: Adjustable bracket allows wall-mount, ground-mount, or pole-mount installation.
Q4: Can it work with motion sensors?
A4: Optional sensor or dimming controls can be integrated upon request.
Q5: How efficient is the SKX-TGD-XH-S19 compared to traditional lamps?
A5: It delivers over 60% energy savings versus halogen or metal-halide floodlights.
