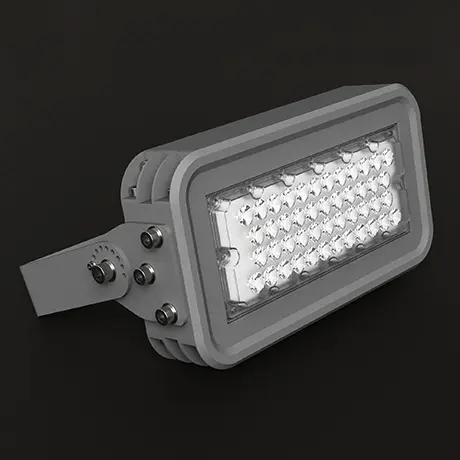

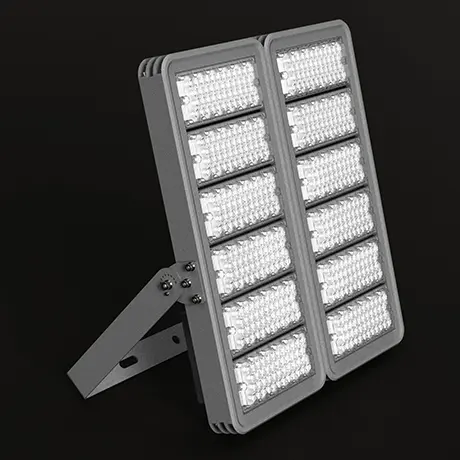

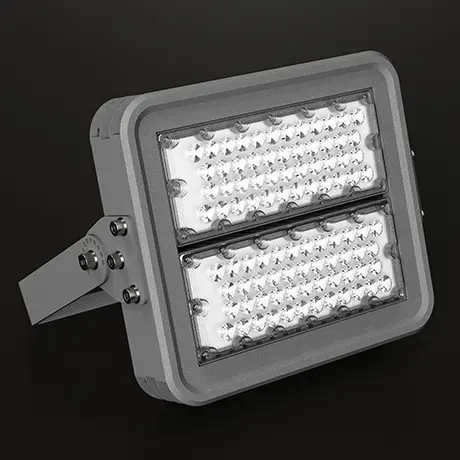

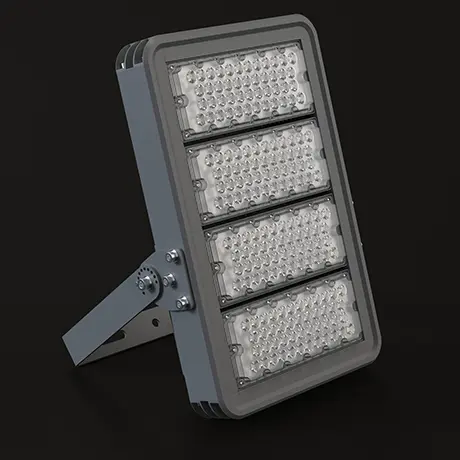

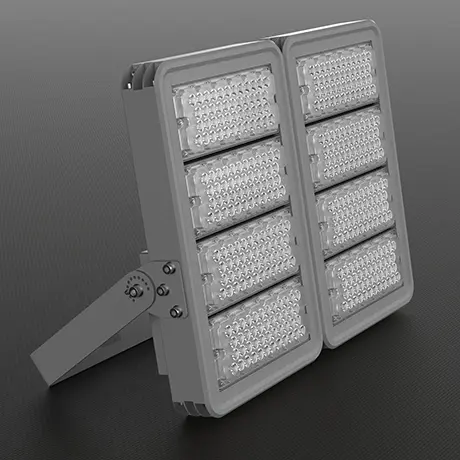

SKX-TGD-XH-L20 120W-1200W LED Flood Light Series
High-power 120–1200W LED flood light for stadiums and industrial sites. IP65 waterproof, durable aluminum body and multiple beam angles.
P/N: SKX-TGD-XH-L20 Series
High Power LED Flood Light
Power: 120-1200W
Input Voltage: AC 90-305Vac; 50/60Hz
Luminous efficiency: 120-180lm/W
Die-cast Aluminum housing
Lifetime: 5,000 hrs
IP65
Product Detail
Product Overview
The HQ Lighting SKX-TGD-XH-L20 Flood Light Series is designed for high-power industrial and sports lighting.
It offers superior brightness, wide beam coverage, and stable long-term performance.
With multiple optical distributions (Type I–VI), this model ensures precise illumination for any large-scale project.
Key Features
-
Available models: 120W / 240W / 360W / 480W / 600W / 720W / 960W / 1200W
-
High luminous efficiency up to 180 lm/W
-
Die-cast aluminum housing, anti-corrosion coating
-
IP65 waterproof
-

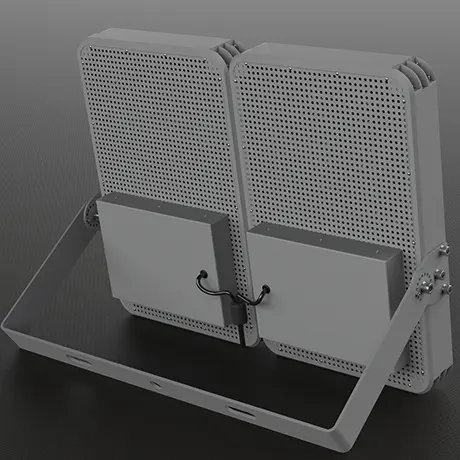

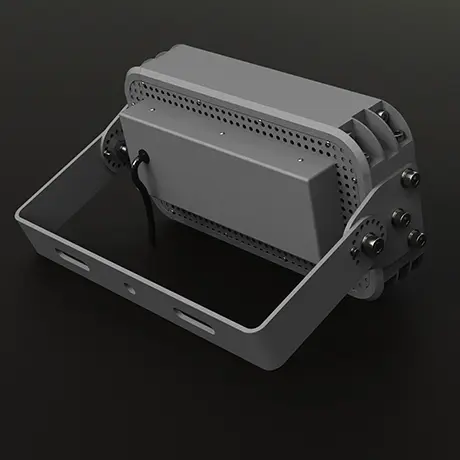

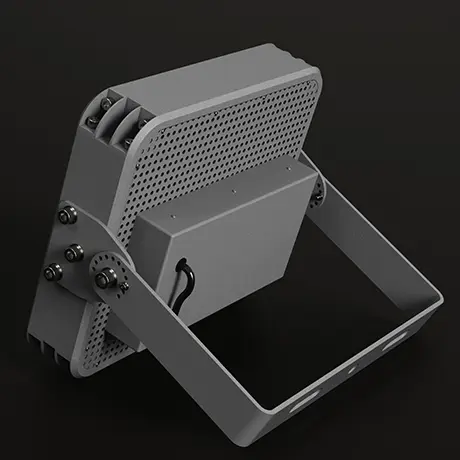

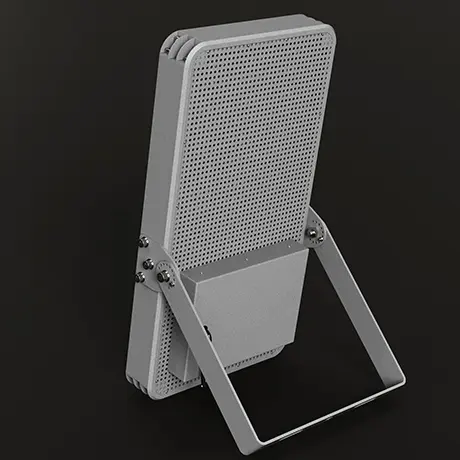

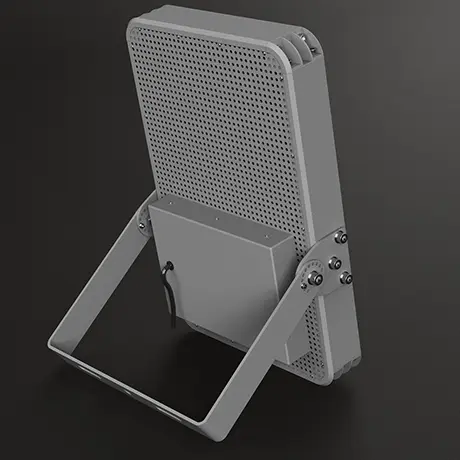

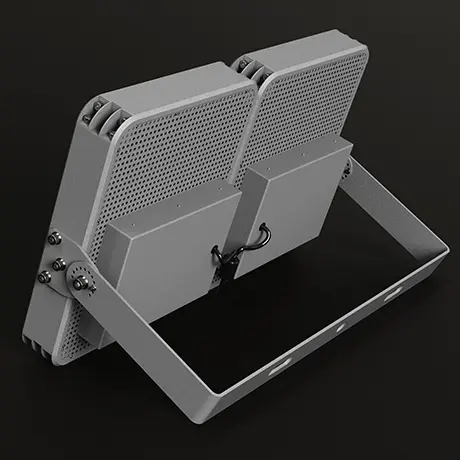

Adjustable bracket for easy installation
-
Long service life > 50,000 h
Applications
Stadiums • Airports • Seaports • Warehouses • Billboards • Large-area outdoor lighting
Specifications (SPEC)
| Model | Power | Voltage | PF | Efficiency | CCT | CRI |
|
Material | IP | Lifespan | Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SKX-TGD-XH-L20-120 | 120 W | AC 90–305 V | ≥ 0.95 | 120–180 lm/W | 2700–6500 K | ≥ 70/80 | Die-cast Al + Glass lens | IP65 | > 50 000 h | 380 × 320 × 120 | |
| SKX-TGD-XH-L20-240 | 240 W | ″ | ″ | ″ | ″ | ″ | ″ | ″ | ″ | 380 × 350 × 120 | |
| SKX-TGD-XH-L20-360 | 360 W | ″ | ″ | ″ | ″ | ″ | ″ | ″ | ″ | 380 × 480 × 120 | |
| SKX-TGD-XH-L20-480 | 480 W | ″ | ″ | ″ | ″ | ″ | ″ | ″ | ″ | 380 × 620 × 120 | |
| SKX-TGD-XH-L20-600 | 600 W | ″ | ″ | ″ | ″ | ″ | ″ | ″ | ″ | 380 × 750 × 120 | |
| SKX-TGD-XH-L20-720 | 720 W | ″ | ″ | ″ | ″ | ″ | ″ | ″ | ″ | 760 × 480 × 120 | |
| SKX-TGD-XH-L20-960 | 960 W | ″ | ″ | ″ | ″ | ″ | ″ | ″ | ″ | 760 × 620 × 120 | |
| SKX-TGD-XH-L20-1200 | 1200 W | ″ | ″ | ″ | ″ | ″ | ″ | ″ | ″ | 760 × 750 × 120 |
FAQ
Q1: Is the SKX-TGD-XH-L20 suitable for stadiums or ports?
A1: Yes, it’s designed for high-mast and large-area professional lighting.
Q2: Can it be mounted on poles?
A2: Yes, the adjustable bracket allows wall, ground, or pole installation.
Q3: Are beam angles customizable?
A3: Yes, choose among Type I–VI beam distributions.
