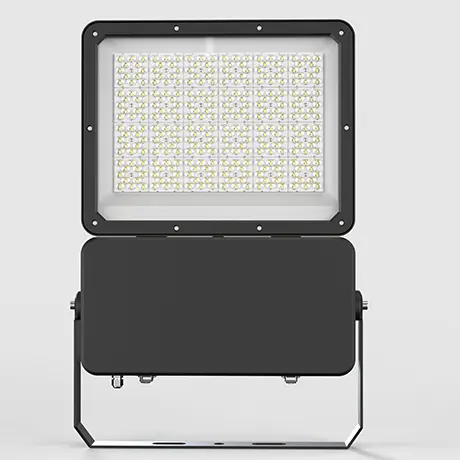

SKX-TGD-FL24 300W-500W LED Flood Light Series
High-efficiency 300–500W LED flood light with 180 lm/W output, tool-free maintenance, IP66 protection, and multiple beam options.
P/N: SKX-TGD-FL24 Series
LED Flood Light
Power: 300-500W
Input Voltage: AC 90-305Vac; 50/60Hz
Luminous efficiency: 120-180lm/W
Die-cast Aluminum housing
Lifetime: 5,000 hrs
IP66
Product Detail
Product Overview
The HQ Lighting SKX-TGD-FL24 Flood Light Series represents a new generation of high-performance outdoor lighting.
Built with independent heat dissipation for both LED module and power supply, it minimizes light decay and ensures a long lifetime.
It supports smart dimming control, photocell sensors, and multiple mounting options for diverse environments.
With luminous efficiency up to 180 lm/W, the FL24 is an ideal lighting solution for industrial areas, ports, and sports facilities requiring reliability, precision, and power.
Key Features
-
Ultra-high efficiency: up to 180 lm/W with SMD5050 or Lumileds/CREE chips
-

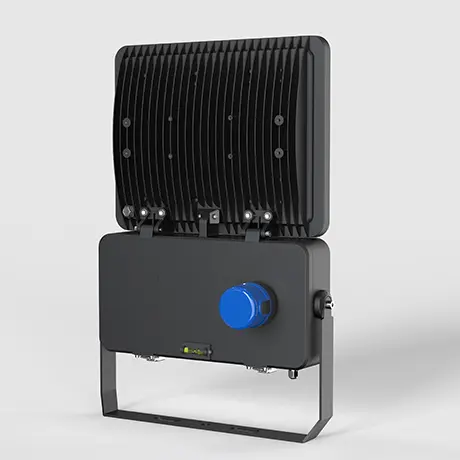

Independent split heat dissipation reduces LED decay effectively
-
Tool-free maintenance — easy assembly and quick service
-

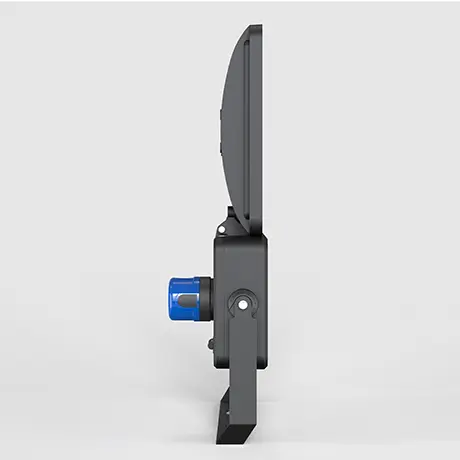

Adjustable die-cast aluminum bracket for horizontal or vertical mounting
-
Smart control support: photocell, 1–10V dimming, automatic daylight response
-
Beam types: Type I–V distributions (narrow to wide flood options)
-
IP66 waterproof and anti-corrosion aluminum housing (ADC12)
-
Long lifetime: >50,000 hours under full load operation
Applications
Industrial zones • Warehouses • High-mast poles • Seaports • Parking lots • Sports arenas • Architectural façades
Technical Specifications (SPEC)
| Model | Power | Input Voltage | PF | Luminous Efficiency | LED Chips | Material | CCT | CRI | Driver Options | Lifetime (hrs) | IP Level | Dimensions (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKX-TGD-FL24-300 | 300 W | AC 90–305 V / 50–60 Hz | >0.95 | 120–180 lm/W | Lumileds / CREE / Custom | Die-cast Aluminum (ADC12) | 2700–6500 K | >70 / 80 | Inventronics / Meanwell / Custom | 50,000 h | IP66 | 450 × 514 × 86 | |
| SKX-TGD-FL24-400 | 400 W | ″ | ″ | ″ | ″ | ″ | ″ | ″ | ″ | ″ | ″ |
|
|
| SKX-TGD-FL24-500 | 500 W | ″ | ″ | ″ | ″ | ″ | ″ | ″ | ″ | ″ | ″ |
|
Optical Beam Options
-
Type I – 90°×155° (Roadway focused)
-
Type II Medium – 80°×145°
-
Type III Medium – 100°×160° / 45°×157°
-
Type IV Medium – 105°×157°
-
Type V – 160°×160° symmetric distribution
Mounting Options
-
Single or double brackets (small/large model)
-
Wall-mounted bracket
-
Floodlight sleeve mount (Ø60 / Ø89 mm)
-
Street-light arm compatible
Intelligent Control Options
-
Photocell sensor for daylight-based automatic ON/OFF
-
1–10V dimmable driver (manual or sensor-based dimming)
-
Programmable timer control: auto-adjust brightness by schedule
-
Ambient luminance control: lamp adjusts brightness automatically at dusk/dawn
-
Computer-controlled version available for smart lighting networks
FAQ
Q1: What makes the SKX-TGD-FL24 different from regular flood lights?
A1: The SKX-TGD-FL24 uses independent cooling for LEDs and driver, improving reliability and extending lifespan.
Q2: Does it support smart control?
A2: Yes, it can integrate photocell sensors, timers, and 1–10V dimming protocols for smart energy management.
Q3: Can I use it in coastal areas?
A3: Yes, the die-cast aluminum body with anti-corrosion coating and IP66 protection ensures performance in harsh marine environments.
Q4: What beam options are available?
A4: From Type I (narrow beam) to Type V (wide flood), allowing precise adaptation to various installations.
Q5: How is maintenance performed?

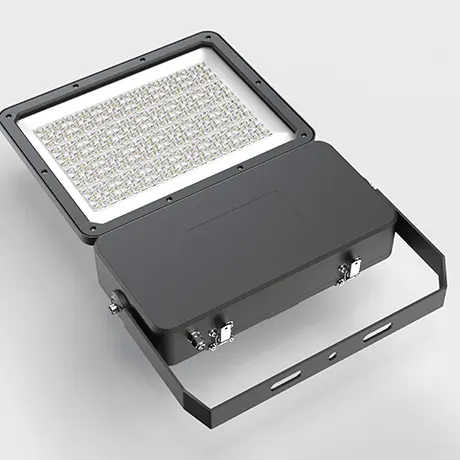

A5: The FL24 offers tool-free disassembly — the light module and power box can be detached easily for service or upgrades.
