60W/80W/100W/120W All In One SKX-S-LD22 Series Solar Street Light
60W~120W All In One Solar Street Light for Residential & Commercial Use
P/N: SKX-S-LD Series
Power: 60W/80W/100W/120W
120W~200W Solar panel
LED SMD 5050
Upto 24000lm
Die-cast aluminum
LiFePO4 battery
MPPT controller
Product Detail

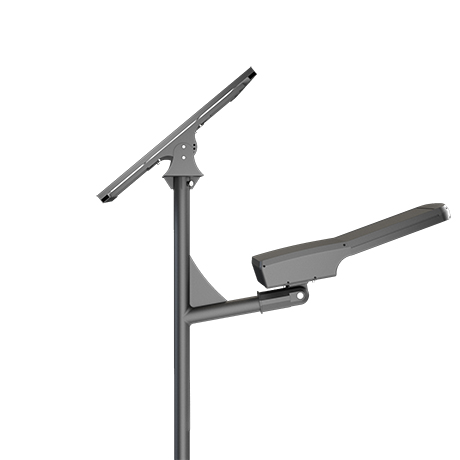

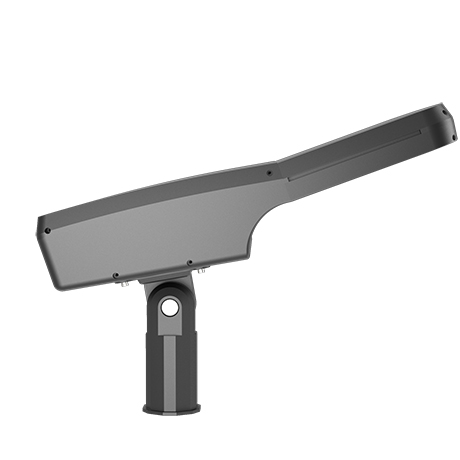

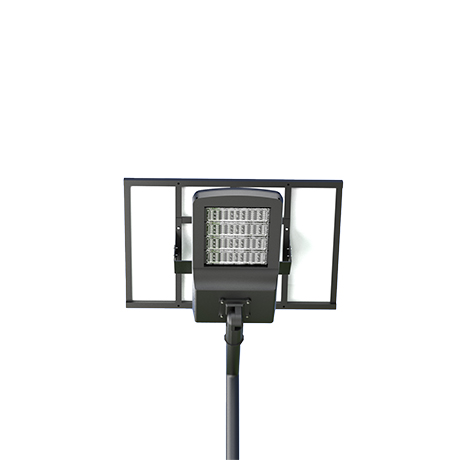

Solar LED Street Light - SKX-S-LD22 Series
Product Overview
The SKX-S-LD22 series is a high-efficiency solar-powered LED street light designed for sustainable outdoor lighting solutions. With advanced LumiLEDs technology, MPPT controllers, and durable construction, these lights ensure superior brightness, energy savings, and reliability in diverse environments.
Key Features
-
High Luminosity: Ranging from >12,000 lm to >24,000 lm for broad illumination coverage.
-
Energy Efficiency: Consistent light efficiency of 200 lm/W across all models.
-
Customizable Color Temperature: Options include 3000K, 4000K, 5000K, 5700K, and 6500K.
-
Durable Design: IP65-rated housing made of die-cast aluminum (ADC12) and polycarbonate with GEL for weather resistance.
-
Smart Charging: MPPT controller with >95% charging efficiency; fully charges in 4–5 hours of sunlight.
-
Long Battery Life: Lithium Phosphate (LiFePO4) batteries support 3 rainy days of operation.
Technical Specifications
| Model | SKX-S-LD22-60P | SKX-S-LD22-80P | SKX-S-LD22-100P | SKX-S-LD22-120P |
|---|---|---|---|---|
| Power (W) | 60W | 80W | 100W | 120W |
| Luminous Flux | >12,000 lm | >16,000 lm | >20,000 lm | >24,000 lm |
| LED Chips | 56PCS 5050 | 84PCS 5050 | 112PCS 5050 | 112PCS 5050 |
| Battery Capacity | 12.8V 42AH | 12.8V 60AH | 25.6V 36AH | 25.6V 42AH |
| Solar Panel | 120W | 150W | 180W | 200W |
| Pole Height | 7–8M | 8–10M | 10–12M | 10–12M |
| Working Temperature | -25°C to 65°C | |||
| Warranty | 3 years |
Additional Specifications
-
Beam Angle: Customizable (Type 1/2/3 with GEL).
-
Tilt Adjustment: Up to 15° for optimal solar panel positioning.
-
Pole Compatibility: Fits 60–76mm diameter poles.
-
Light Color: Blue (customizable).
Applications
Ideal for roads, parking lots, gardens, and public spaces requiring eco-friendly, low-maintenance lighting.
Customization Available: Contact us for tailored solutions to meet your project needs.
