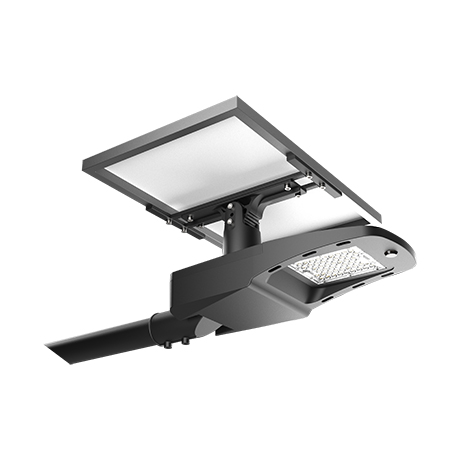

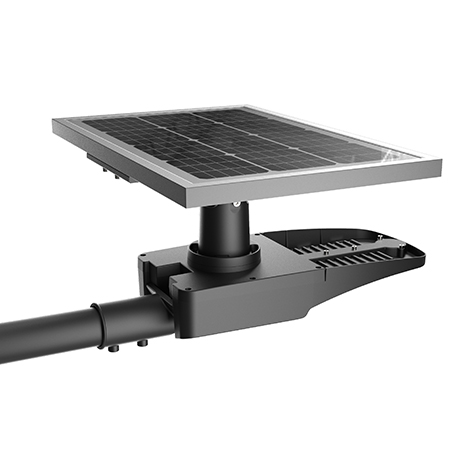

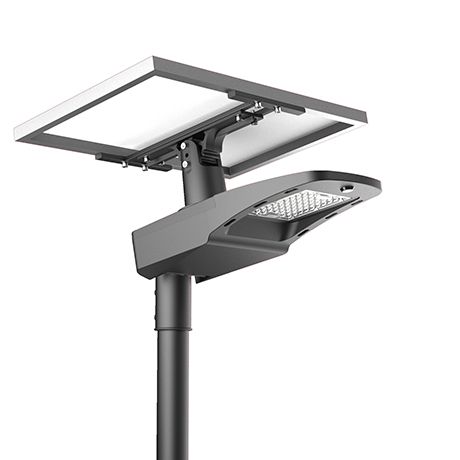

30W/40W/50W/60W SKX-S-LD Series Solar Street Light
SKX-S-LD Series Solar Street Lights (30W-60W) - Ideal for Residential & Commercial Use
P/N: SKX-S-LD Series
Power: 30W/40W/50W/60W
70W~120W Solar Panel
Microwave motion sensor
LED Source Bridgelux 5050 (180 lm/W)
Die-cast Aluminum housing
LiFePO4 battery
MPPT controller
Product Detail
SKX-S-LD Series Solar Street Light 30W~60W
Technical Specifications
| Model | SKX-S-LD30 | SKX-S-LD40 | SKX-S-LD50 | SKX-S-LD60 |
|---|---|---|---|---|
| Power (W) | 30W | 40W | 50W | 60W |
| Luminous Flux | >5,400 lm | >7,200 lm | >9,000 lm | >10,200 lm |
| LED Source | Bridgelux 5050 (180 lm/W) | |||
| Battery | LiFePO4 24Ah/307Wh | LiFePO4 30Ah/384Wh | LiFePO4 42Ah/504Wh | LiFePO4 52Ah/624Wh |
| Solar Panel | 70W Monocrystalline | 80W Monocrystalline | 100W Monocrystalline | 120W Monocrystalline |
| Charging Time | 4-5h (sunny), 3 rainy days backup | |||
| Installation | 5-6m pole (10-20m spacing) | 6-7m pole (12-25m spacing) | 7-8m pole (14-30m spacing) | 8-9m pole (16-35m spacing) |
| Housing | ADC12 Die-cast aluminum | |||
| Protection | IP65, -25°C to +65°C | |||
| Warranty | 2 years |
Product Highlights
Advanced Solar Technology
-
High-efficiency monocrystalline solar panels with >90% charging efficiency
-
MPPT controller optimizes energy conversion even in low-light conditions
-
LiFePO4 battery with 3-day rainy weather backup
Smart Lighting Control
-
Microwave motion sensor detects movement up to 10m distance
-
Auto-dimming: 100% brightness when motion detected, 30% standby
-
Programmable operation: 4h full power + 2h 50% + 6h 30%
Durable Construction
-
ADC12 die-cast aluminum housing with corrosion-resistant coating
-
Polycarbonate lens with 140° beam angle for wide coverage
-
Tool-less maintenance design for easy battery/LED replacement
Installation Flexibility
-
0-15° adjustable solar panel angle
-
Compatible with 60-65mm diameter poles
-
Modular design reduces installation time by 50%
Certifications & Warranty
-
CE, RoHS, ISO 9001:2015 certified
-
2-year warranty (extendable to 5 years)
