40W/50W/60W/80W All In One SKX-S-FY24-H Series High-Power Solar Street Light
SKX-S-FY24-H Series High-Power Solar Street Light (40W-80W) ~ Ideal for Residential & Commercial Use
P/N: SKX-S-FY24-H Series
Power: 40W/50W/60W/80W
100W~160W Bifacial solar panel
Microwave motion sensor
LED SMD 5050 (250~260 lm/W)
Aluminum 6063 frame
LiFePO4 battery
MPPT controller
Product Detail

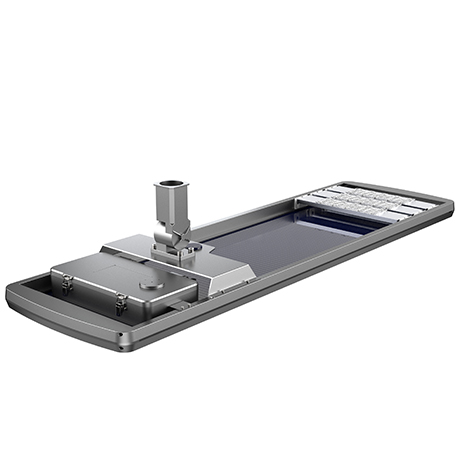

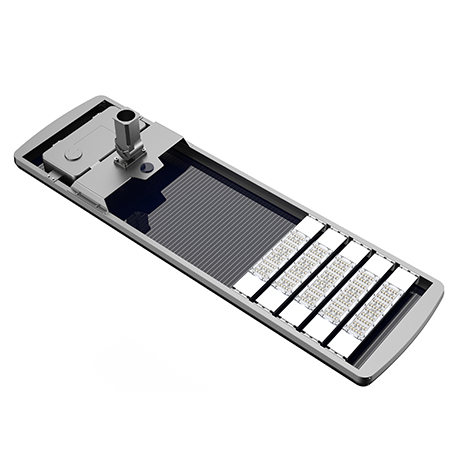

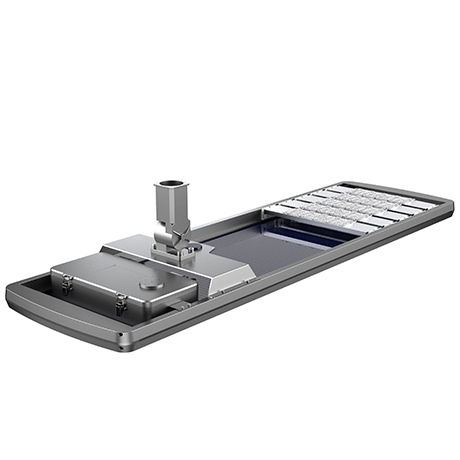

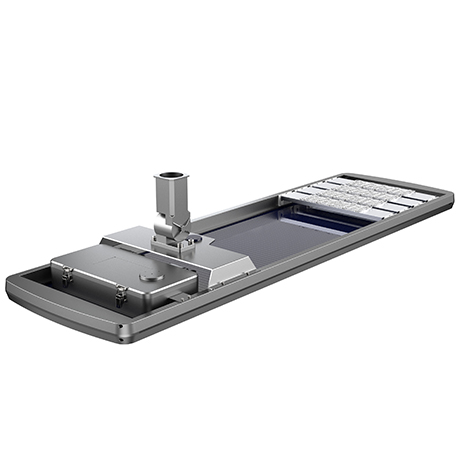

SKX-S-FY24-H Series ALL IN ONE High-Power Solar Street Light
Technical Specifications
| Parameter | SKX-S-FY100 (100W) | SKX-S-FY120 (120W) | SKX-S-FY140 (140W) | SKX-S-FY160 (160W) |
|---|---|---|---|---|
| Model No | SKX-S-FY100 | SKX-S-FY120 | SKX-S-FY140 | SKX-S-FY160 |
| Solar Panel | 18V 100W Mono | 18V 120W Mono | 18V 140W Mono | 18V 160W Mono |
| Li Battery | LiFePO4 12.8V 42AH (537WH) | LiFePO4 12.8V 48AH (614WH) | LiFePO4 12.8V 60AH (768WH) | LiFePO4 12.8V 66AH (845WH) |
| Controller | MPPT 10A | MPPT 10A | MPPT 15A | MPPT 15A |
| Luminous Flux | 10000LM±500 | 12000LM±500 | 16000LM±500 | 20000LM±500 |
| LED Chips | 5050 (56pcs) | 5050 (84pcs) | 5050 (112pcs) | 5050 (140pcs) |
| Material | Aluminum 6063 | Aluminum 6063 | Aluminum 6063 | Aluminum 6063 |
| CCT | 5700K or Customized | 5700K or Customized | 5700K or Customized | 5700K or Customized |
| CRI | >70 | >70 | >70 | >70 |
| Lifetime | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
| Beam Angle | 80°×160° | 80°×160° | 80°×160° | 80°×160° |
| Operating Temp | -20℃ to +65℃ | -20℃ to +65℃ | -20℃ to +65℃ | -20℃ to +65℃ |
| Charge Time | 5-6 hours | 5-6 hours | 5-6 hours | 5-6 hours |
| Lighting Time | 12 hours/day | 12 hours/day | 12 hours/day | 12 hours/day |
| Sensors | Light+Time+Motion | Light+Time+Motion | Light+Time+Motion | Light+Time+Motion |
Product Highlights
-
Product Advantages
-
Patented Streamlined Design
-
Exclusive patented product featuring aerodynamic design
-
-
High-Efficiency LED Technology
-
Premium LED chips delivering 250-260 lumens per watt
-
-
Dual-Side Solar Charging
-
Innovative bifacial solar panels with >30% charging efficiency
-
-
Modular Maintenance System
-
Standardized modular components for easy maintenance and replacement
-
-
Optimal Cost Efficiency
-
Maximized energy savings and reduced maintenance costs
-
-
This light type is mainly used for wider sidewalks, entrances to driveways, bicycle lanes, or other long and narrow lighting area.
